TC1-1-43+ footprint, schematic symbol and 3D model by Mini-Circuits

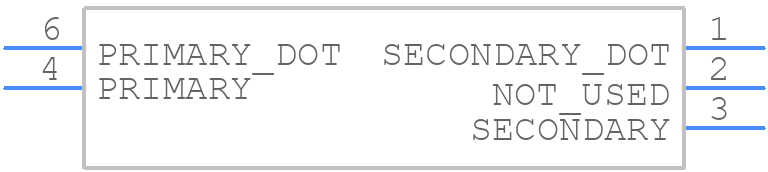

Symbol

click to zoom

PCB Footprints

TC1-1-43+ - Mini-Circuits PCB footprint - Other - Other - TC1-1-43+-2

click to zoom

3D Models

TC1-1-43+ - Mini-Circuits - 3D model - Other - TC1-1-43+-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TC1-1-43+
Part Number TC1-1-43+
Manufacturer Mini-Circuits
Pin Count 5
Part Category Transformer
Package Category Other
Footprint Name Other - TC1-1-43+-2
Released Date Nov 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TC1-1-43+ Details

Manufacturer Part Number:
TC1-1-43+
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
7
Additional Feature:
HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO
Application:
SIGNAL
Cut-off Frequency-Max:
4000 MHz
Cut-off Frequency-Min:
650 MHz
DC Unbalance Current-Max:
30 mA
Height:
4.06 mm
Insertion Loss:
2 dB
JESD-609 Code:
e3
Length:
3.81 mm
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Max:
4000000 kHz
Operating Frequency-Min:
650000 kHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TR, 13 INCH
Surface Mount:
YES
Terminal Finish:
TIN OVER NICKEL
Transformer Type:
RF TRANSFORMER
Width:
3.81 mm

TC1-1-43+ Frequently Asked Questions (FAQs)

The recommended PCB layout and footprint for the TC1-1-43+ can be found in the Mini-Circuits application note AN-60-1, which provides guidelines for optimal performance and reliability.
The TC1-1-43+ has a nominal impedance of 50 ohms, but impedance matching may be required depending on the specific application. Mini-Circuits recommends using their Impedance Matching Calculator tool or consulting with their application engineers for customized impedance matching solutions.
The maximum power handling of the TC1-1-43+ is 2 watts, but this can vary depending on the operating frequency and environmental conditions. It's recommended to consult with Mini-Circuits application engineers for specific power handling requirements.
The TC1-1-43+ is a commercial-grade component, but Mini-Circuits offers a space-qualified version, the TC1-1-43+/SQ, which meets the requirements of NASA's ASTM E595 standard for outgassing and is suitable for high-reliability and space applications.
Yes, the TC1-1-43+ can be used in a push-pull configuration, but it's essential to ensure that the transformers are properly phased and matched to achieve optimal performance. Consult with Mini-Circuits application engineers for guidance on push-pull configurations.
