TC1-1G2+ - Mini-Circuits

Description: Surface Mount RF Transformer 50Ω 1.5 to 500 MHz

Download TC1-1G2+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

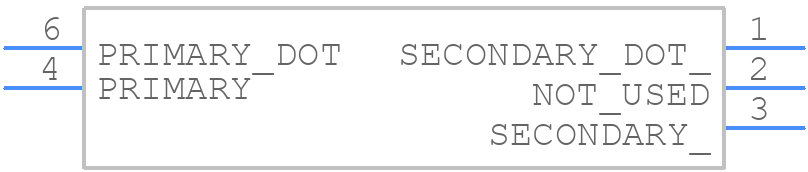

Symbol
TC1-1G2+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC1-1G2+ - Mini-Circuits PCB footprint - Other - Other - TC1-1G2+-2
click to zoom
3D Models
TC1-1G2+ - Mini-Circuits - 3D model - Other - TC1-1G2+-2
click to zoom

TC1-1G2+ Details

  • Manufacturer Part Number:

    TC1-1G2+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    OHMS RATIO IS 1

  • Cut-off Frequency-Max:

    500 MHz

  • Cut-off Frequency-Min:

    1.5 MHz

  • Height:

    3.81 mm

  • Insertion Loss:

    3 dB

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC1-1G2+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • To achieve the specified return loss and insertion loss performance, it's crucial to ensure that the TC1-1G2+ is properly matched to the system impedance (typically 50 ohms). This can be done using impedance matching networks or by optimizing the PCB layout.
  • The maximum power handling of the TC1-1G2+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 1W of continuous power. It's essential to derate the power handling based on the operating frequency and temperature.
  • While the TC1-1G2+ is optimized for 50 ohm systems, it can be used in non-50 ohm systems with some performance degradation. However, it's essential to re-optimize the impedance matching network and PCB layout to ensure optimal performance.
  • The operating temperature range of the TC1-1G2+ is -40°C to +85°C. However, the device's performance may degrade at extreme temperatures, and it's essential to consider temperature compensation and derating in the system design.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC1-1G2+ Overview

Use the download button to access the TC1-1G2+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC1-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
