TC1-1TX+ - Mini-Circuits

Description: RF Balun 400kHz ~ 500MHz 50 / 50Ohm 6-SMD (5 Leads), Flat Lead

Download TC1-1TX+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

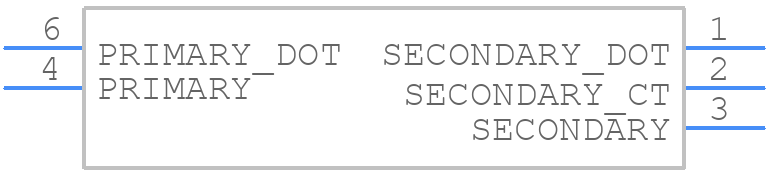

Symbol
TC1-1TX+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC1-1TX+ - Mini-Circuits PCB footprint - Other - Other - TC1-1TX+-5
click to zoom
3D Models
TC1-1TX+ - Mini-Circuits - 3D model - Other - TC1-1TX+-5
click to zoom

TC1-1TX+ Details

  • Manufacturer Part Number:

    TC1-1TX+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Application:

    SIGNAL

  • Cut-off Frequency-Max:

    500 MHz

  • Cut-off Frequency-Min:

    0.4 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    500000 kHz

  • Operating Frequency-Min:

    400 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC1-1TX+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC1-1TX+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can also use simulation software like ADS or AWR to optimize the matching network.
  • The TC1-1TX+ can handle up to +15 dBm of input power. Exceeding this limit may cause compression, distortion, or even damage to the device. Ensure that your signal source is attenuated or amplified accordingly.
  • Yes, the TC1-1TX+ can be used in a differential configuration. However, you'll need to use two devices and configure them in a differential topology. Consult the datasheet and application notes for more information.
  • The TC1-1TX+ operates from -40°C to +85°C. Ensure that your system design takes into account the thermal characteristics of the device and provides adequate heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC1-1TX+ Overview

Use the download button to access the TC1-1TX+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC1-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
