TC1121COA - Microchip

Description: Voltage Regulators - Switching Regulators w/ Shutdown

Download TC1121COA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

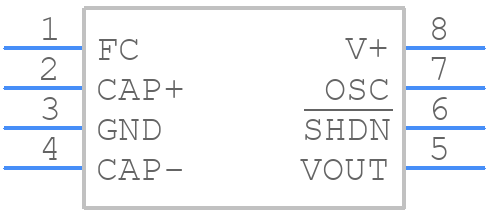

Symbol
TC1121COA - Microchip - PCB symbol
click to zoom
PCB Footprints
TC1121COA - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOIC (2002)
click to zoom
3D Models
TC1121COA - Microchip - 3D model - Small Outline Packages - SOIC (2002)
click to zoom

TC1121COA Details

  • Manufacturer Part Number:

    TC1121COA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.06 A

  • Output Voltage-Max:

    -5.5 V

  • Output Voltage-Min:

    -2.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    200 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TC1121COA Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TC1121COA involves placing the device close to the power source, using a solid ground plane, and minimizing the length of the input and output traces. It's also recommended to use a 10uF capacitor between the VIN and GND pins to filter out noise.
  • To ensure stability, make sure to follow the recommended layout and placement guidelines, use a sufficient output capacitor (at least 10uF), and add a 1kΩ resistor in series with the output capacitor to prevent oscillation.
  • The TC1121COA can handle input voltages up to 15V, but it's recommended to keep the input voltage below 12V for optimal performance and to prevent overheating.
  • The TC1121COA is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at high temperatures to prevent overheating and ensure reliability.
  • The output voltage of the TC1121COA can be calculated using the formula: VOUT = (R1 / R2) * (VIN - VREF), where R1 and R2 are the resistors in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (1.25V).
