TC1301B-AIAVMF - Microchip

TC1301B-AIAVMF Details

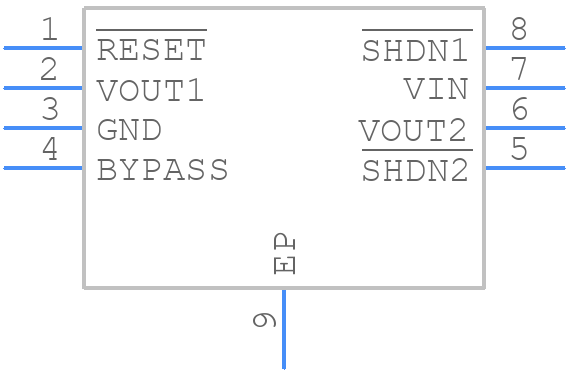

• Manufacturer Part Number:

  TC1301B-AIAVMF

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DFN-8

• Pin Count:

  8

• Manufacturer Package Code:

  DFN-8

• Country Of Origin:

  Philippines, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.18 V

• Dropout Voltage1-Nom:

  0.104 V

• Input Voltage Absolute-Max:

  6.5 V

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  4.3 V

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Line Regulation-Max:

  0.0125%

• Line Regulation-Max (%/V):

  0.2

• Load Regulation-Max:

  0.033%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.3 A

• Output Current2-Max:

  0.15 A

• Output Voltage1-Max:

  3.3825 V

• Output Voltage1-Min:

  3.2175 V

• Output Voltage1-Nom:

  3.3 V

• Output Voltage2-Max:

  2.5625 V

• Output Voltage2-Min:

  2.4375 V

• Output Voltage2-Nom:

  2.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.12,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Screening Level:

  TS 16949

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  2.5%

• Width:

  3 mm
