TC1303B-IA0EMF - Microchip

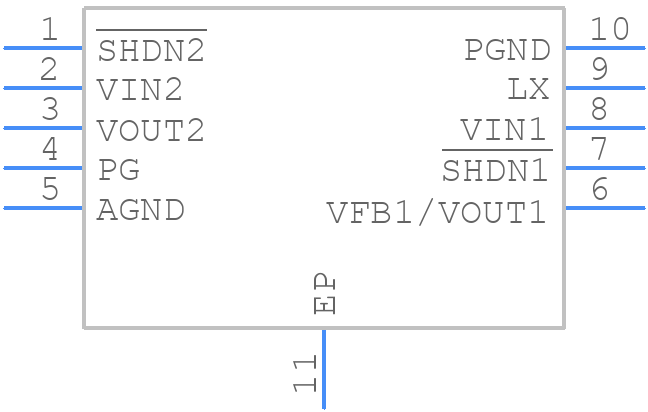

TC1303B-IA0EMF Details

• Manufacturer Part Number:

  TC1303B-IA0EMF

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DFN

• Package Description:

  3 X 3 MM, 0.9 MM HEIGHT, PLASTIC, DFN-10

• Pin Count:

  10

• Manufacturer Package Code:

  DFN-10

• Country Of Origin:

  Malaysia, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8

• Additional Feature:

  AUTOMATIC PWM TO PFM MODE

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Efficiency (Main Output):

  90%

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.7 V

• Input Voltage-Nom:

  3.6 V

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Load Regulation-Max:

  0.2%

• Moisture Sensitivity Level:

  1

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.5 A

• Output Voltage-Max:

  2.5625 V

• Output Voltage-Min:

  2.4375 V

• Output Voltage-Nom:

  2.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC10,.12,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Protections:

  OUTPUT OVER CURRENT; THERMAL

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2400 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
