TC16-161TG2+ - Mini-Circuits

Description: RF Balun 600kHz ~ 160MHz 1:16 6-SMD (5 Leads), Flat Lead

Download TC16-161TG2+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

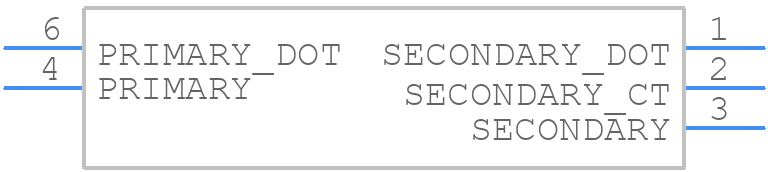

Symbol
TC16-161TG2+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC16-161TG2+ - Mini-Circuits PCB footprint - Other - Other - CASE STYLE: AT224-3_2025
click to zoom
3D Models
TC16-161TG2+ - Mini-Circuits - 3D model - Other - CASE STYLE: AT224-3_2025
click to zoom

TC16-161TG2+ Details

  • Manufacturer Part Number:

    TC16-161TG2+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    LEANGTH DIM INCLUDES TERMINALS ALSO

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    160 MHz

  • Cut-off Frequency-Min:

    0.6 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    3.81 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e4

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    160000 kHz

  • Operating Frequency-Min:

    600 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC16-161TG2+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC16-161TG2+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the component.
  • Mini-Circuits recommends a soldering profile with a peak temperature of 260°C for a maximum of 10 seconds. It's essential to follow a controlled soldering process to prevent damage to the component.
  • The TC16-161TG2+ is a commercial-grade component, and its suitability for high-reliability or space-grade applications depends on the specific requirements of the project. Engineers should consult with Mini-Circuits or a qualified reliability expert to determine if this component meets the necessary standards.
  • Mini-Circuits provides application notes and technical support resources to help troubleshoot common issues. Engineers can also consult with experienced RF design engineers or seek guidance from online forums and communities.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC16-161TG2+ Overview

Use the download button to access the TC16-161TG2+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC16-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
