TC234LP32F200NACKXUMA1 - Infineon

TC234LP32F200NACKXUMA1 Details

• Manufacturer Part Number:

  TC234LP32F200NACKXUMA1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

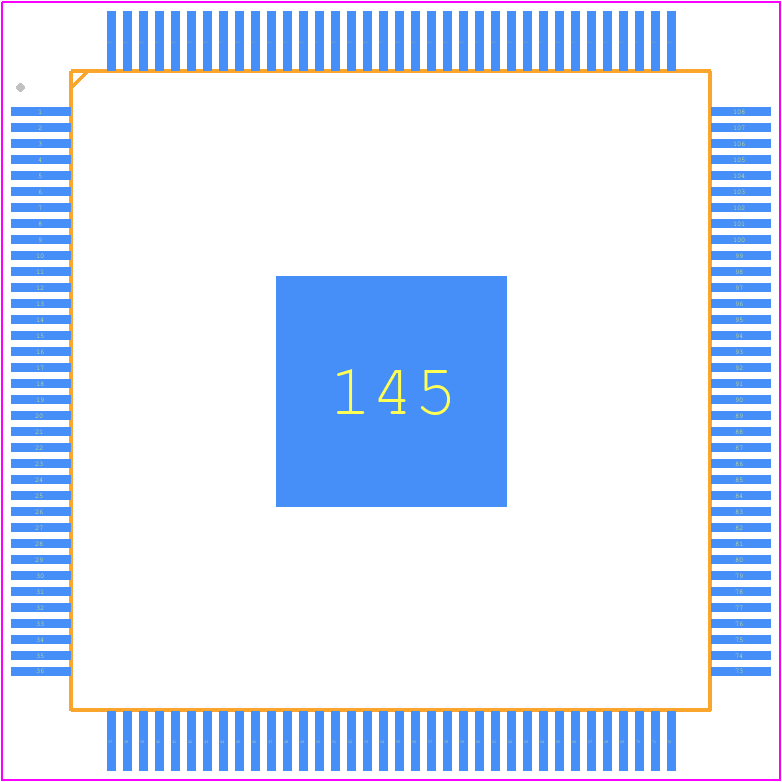

• Package Description:

  TQFP-144

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  53 Weeks, 1 Day

• Date Of Intro:

  2017-08-03

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  8.13

• Has ADC:

  YES

• Additional Feature:

  A/D INPUT LINES 24 CHANNELS (2 MODULES) AVAILABLE

• Bit Size:

  32

• Clock Frequency-Max:

  200 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQFP-G144

• JESD-609 Code:

  e4

• Length:

  16 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  120

• Number of Terminals:

  144

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• RAM (bytes):

  196608

• ROM (words):

  2097152

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.2 mm

• Speed:

  200 MHz

• Supply Voltage-Max:

  1.43 V

• Supply Voltage-Min:

  1.17 V

• Supply Voltage-Nom:

  1.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  16 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
