TC299TX128F300SBCKXUMA1 - Infineon

TC299TX128F300SBCKXUMA1 Details

• Manufacturer Part Number:

  TC299TX128F300SBCKXUMA1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

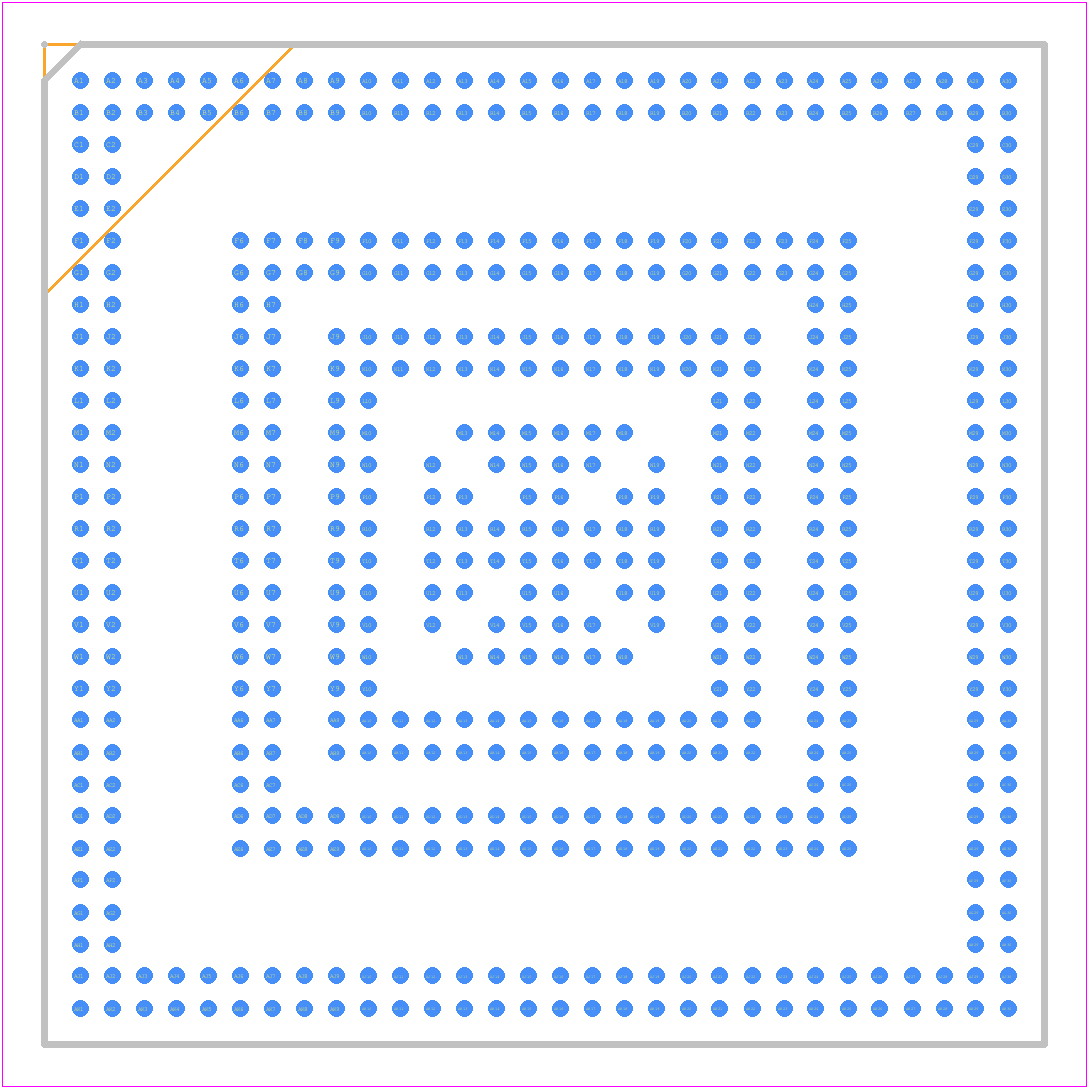

• Package Description:

  LFBGA-516

• Country Of Origin:

  South Korea

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  53 Weeks, 1 Day

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  8.2

• Has ADC:

  YES

• Additional Feature:

  ALSO AVAILABLE SINGLE SUPPLY VOLTAGE 5V, DELTA SIGMA ADC CONVERTER AVAILABLE WITH 10 CHANNELS

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  TC29X

• Clock Frequency-Max:

  300 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FLOATING-POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B516

• JESD-609 Code:

  e2

• Length:

  25 mm

• Low Power Mode:

  NO

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  128

• Number of Serial I/Os:

  13

• Number of Terminals:

  516

• Number of Timers:

  3

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA516,30X30,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• RAM (bytes):

  2842624

• ROM (words):

  8388608

• ROM Programmability:

  FLASH

• Screening Level:

  ISO 26262

• Seated Height-Max:

  1.7 mm

• Speed:

  300 MHz

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin/Silver (Sn/Ag)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  25 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
