- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TC3-1T+
- Part Number TC3-1T+
- Manufacturer Mini-Circuits
- Pin Count 5
- Part Category Transformer
- Package Category Other
- Footprint Name Other - TC3-1T+
- Released Date Aug 17, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TC3-1T+ Details
-
Manufacturer Part Number:
TC3-1T+
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.25
-
Additional Feature:
HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO; PACKING ALSO AVAILABLE IN 7 INCH REEL
-
Cut-off Frequency-Min:
5 MHz
-
Height:
4.06 mm
-
Insertion Loss:
1 dB
TC3-1T+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-1, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
-
The TC3-1T+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat sinking, such as a copper pad or a heat sink, and to keep the device away from heat sources. A thermal interface material can also be used to improve heat transfer.
-
The TC3-1T+ is designed to handle input powers up to +20 dBm. Exceeding this limit can cause damage to the device or affect its performance. It's essential to ensure that the input power is within the recommended range to maintain the device's reliability and performance.
-
While the TC3-1T+ is primarily designed for linear applications, it can be used in switching applications with some precautions. However, the device's switching speed and frequency should be limited to minimize the risk of damage or degradation. It's recommended to consult with Mini-Circuits' application engineers for specific guidance on using the TC3-1T+ in switching applications.
-
Mini-Circuits provides a troubleshooting guide in their application note AN-60-1, which covers common issues and their solutions. Additionally, engineers can contact Mini-Circuits' technical support team for assistance with troubleshooting and debugging.
Trust Checks
Expert Contribution
System Verified
Community Approved
TC3-1T+ Overview

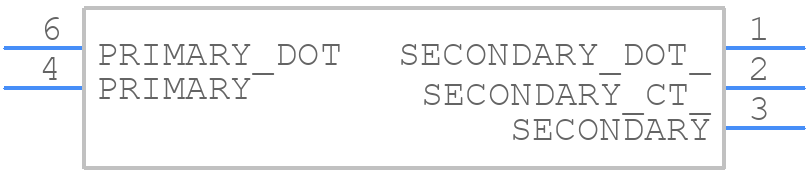

Use the download button to access the TC3-1T+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC3-1,
or try a keyword search, such as RF Transformers
