TC375TE96F300WABKXUMA1 - Infineon

Description: TC37x Emulation Device Family - Debug, Trace, Measure and Calibrate 0 V to 5.5V,300 MHz

Download TC375TE96F300WABKXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

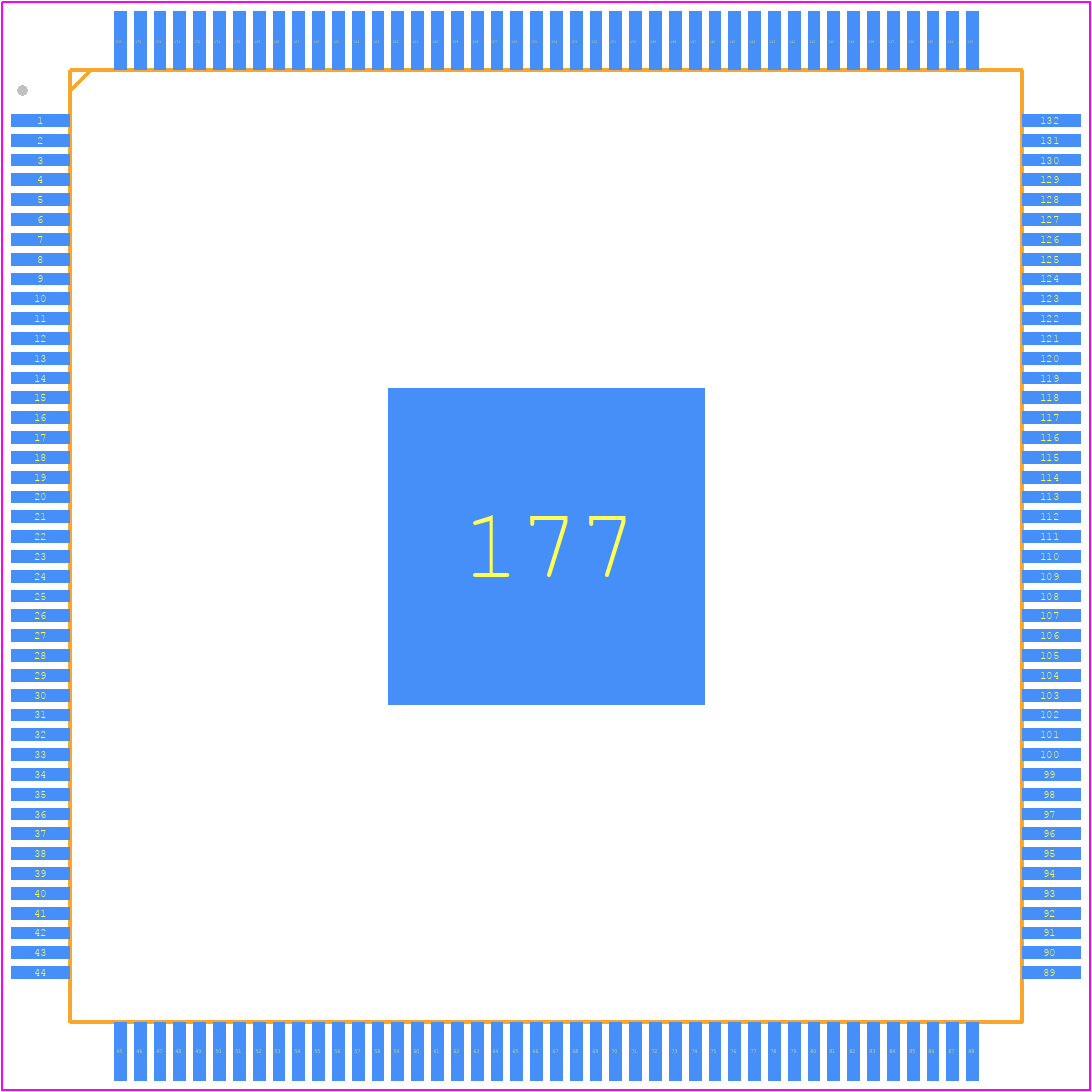

TC375TE96F300WABKXUMA1 - Infineon PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP-176_2026
click to zoom

TC375TE96F300WABKXUMA1 Details

  • Manufacturer Part Number:

    TC375TE96F300WABKXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LQFP-176

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Date Of Intro:

    2020-01-02

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    160 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G176

  • Length:

    24 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    176

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • ROM Programmability:

    FLASH

  • Screening Level:

    ISO 26262

  • Seated Height-Max:

    1.6 mm

  • Speed:

    300 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

TC375TE96F300WABKXUMA1 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for TC375TE96F300WABKXUMA1 is 4.5V to 5.5V, with a typical voltage of 5V.
  • The clock settings for TC375TE96F300WABKXUMA1 can be configured using the Clock Generation Unit (CGU) module. The CGU module allows you to select the clock source, configure the clock frequency, and enable or disable clock outputs.
  • The maximum frequency of the TC375TE96F300WABKXUMA1 is 300 MHz.
  • The TC375TE96F300WABKXUMA1 has 1.5 MB of flash memory.
  • The Error Correction Code (ECC) in the TC375TE96F300WABKXUMA1 is used to detect and correct single-bit errors in the flash memory and SRAM. This ensures data integrity and reliability.
