TC397XP256F300SBCKXUMA1 - Infineon

Description: 32-bit Microcontrollers - MCU AURIX 2G

Download TC397XP256F300SBCKXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

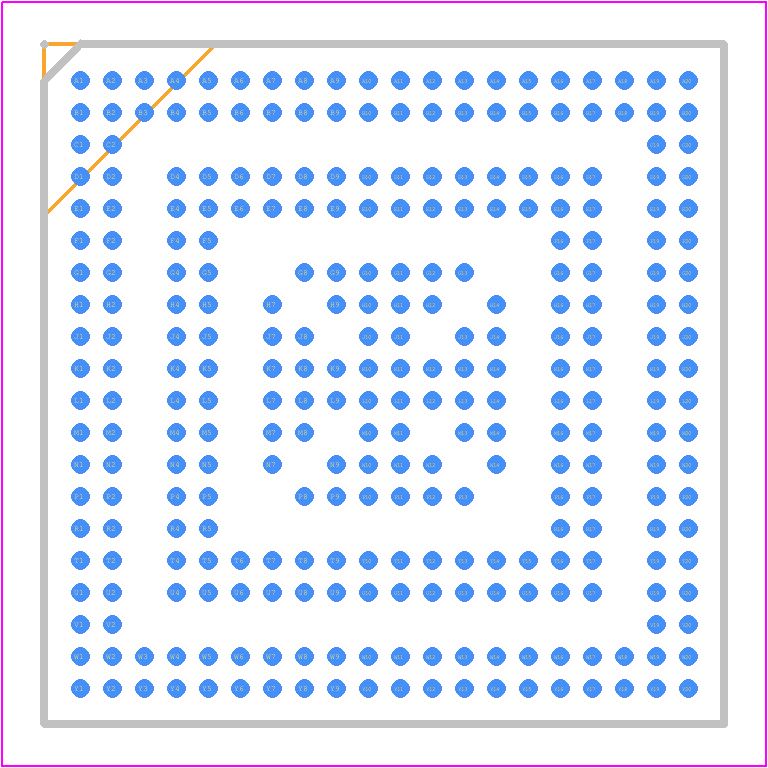

TC397XP256F300SBCKXUMA1 - Infineon PCB footprint - BGA - BGA - LFBGA-292
click to zoom
3D Models
TC397XP256F300SBCKXUMA1 - Infineon  - 3D model - BGA - LFBGA-292
click to zoom

TC397XP256F300SBCKXUMA1 Details

  • Manufacturer Part Number:

    TC397XP256F300SBCKXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    BGA-292

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Date Of Intro:

    2020-01-02

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    160 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PBGA-B292

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    292

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • ROM Programmability:

    FLASH

  • Screening Level:

    ISO 26262

  • Seated Height-Max:

    1.7 mm

  • Speed:

    300 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

TC397XP256F300SBCKXUMA1 Frequently Asked Questions (FAQs)

  • The TC397XP256F300SBCKXUMA1 can operate in a temperature range of -40°C to 125°C.
  • The clock settings can be configured using the Clock Control Unit (CCU) module, which allows for flexible clock generation and distribution. Refer to the device's user manual for detailed configuration options.
  • The maximum frequency of the CPU is 300 MHz.
  • The TC397XP256F300SBCKXUMA1 has 256 KB of flash memory.
  • The TC397XP256F300SBCKXUMA1 has a range of communication interfaces, including SPI, UART, I2C, and CAN.
