TC4-13TX+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers 1:4 CORE & WIRE Transformer, 100 - 1000 MHz, 50

Download TC4-13TX+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

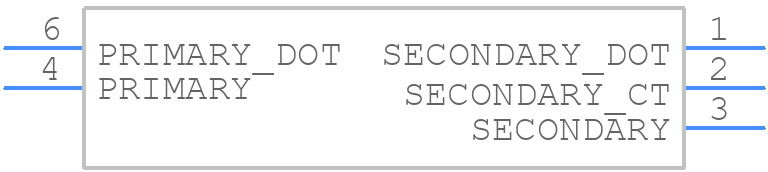

TC4-13TX+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC4-13TX+ - Mini-Circuits PCB footprint - Other - Other - TC4-13TX+-2
click to zoom
3D Models
TC4-13TX+ - Mini-Circuits - 3D model - Other - TC4-13TX+-2
click to zoom

TC4-13TX+ Details

  • Manufacturer Part Number:

    TC4-13TX+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Cut-off Frequency-Min:

    100 MHz

  • Height:

    4.06 mm

  • Insertion Loss:

    1.4 dB

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC4-13TX+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC4-13TX+ has a 50Ω input and output impedance. To impedance match, use a π-network or T-network topology with resistors and capacitors. Mini-Circuits also provides a matching circuit example in their application note AN-60-012.
  • The TC4-13TX+ is rated for operation from -40°C to +85°C. However, it's essential to derate the device's performance and power handling at higher temperatures to ensure reliability and prevent thermal damage.
  • While the TC4-13TX+ is primarily designed for linear applications, it can be used in switching applications with some precautions. Ensure that the device is properly biased, and the switching frequency is within the device's bandwidth. Additionally, consider the device's power handling and thermal limitations.
  • Common issues with the TC4-13TX+ can often be attributed to improper PCB layout, inadequate decoupling, or incorrect biasing. Consult Mini-Circuits' application notes and technical support resources for troubleshooting guidance. Additionally, ensure that the device is operated within its recommended specifications and that the system is properly designed and laid out.
