TC4-19+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers TC XFMR / SURF MOUNT / RoHS/02

Download TC4-19+ Model

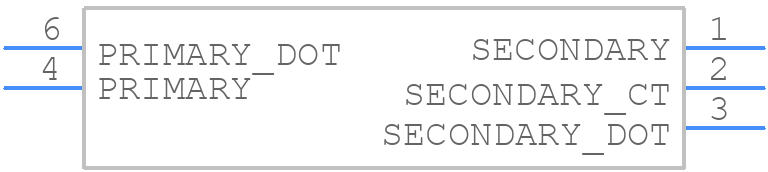

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4-19+ - Mini-Circuits PCB footprint - Other - Other - TC4-19
click to zoom

TC4-19+ Details

  • Manufacturer Part Number:

    TC4-19+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    HEIGHT AND LENGTH DIMENSION INCLUDES TERMINALS ALSO

  • Cut-off Frequency-Min:

    10 MHz

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC4-19+ Frequently Asked Questions (FAQs)

  • The TC4-19+ can operate from -40°C to +85°C, but it's recommended to derate the power handling by 1 dB for every 10°C above 50°C.
  • The TC4-19+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network with capacitors and inductors to achieve a conjugate match. Consult the Mini-Circuits application note AN-60-014 for more information.
  • The TC4-19+ can handle up to 1 watt of continuous wave (CW) input power. However, it's recommended to limit the input power to 0.5 watts for reliable operation.
  • Yes, the TC4-19+ can be used in switching applications, but it's essential to ensure that the switching frequency is within the device's bandwidth (DC to 19 GHz). Additionally, consider the device's thermal characteristics and power handling during switching operations.
  • To troubleshoot issues, check the input and output connections for proper termination, ensure the device is properly biased, and verify that the input power is within the recommended range. Consult the Mini-Circuits application note AN-60-015 for more troubleshooting tips.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC4-19+ Overview

Use the download button to access the TC4-19+ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TC4-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
