TC4-19G2+ - Mini-Circuits

Description: 1:4 CORE & WIRE Transformer, 10 - 1900 MHz, 50Ω

Download TC4-19G2+ Model

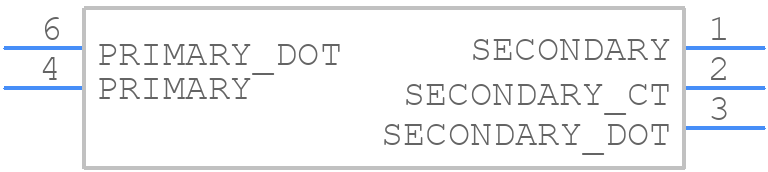

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4-19G2+ - Mini-Circuits PCB footprint - Other - Other - CASE STYLE: AT224-3
click to zoom
3D Models
TC4-19G2+ - Mini-Circuits  - 3D model - Other - CASE STYLE: AT224-3
click to zoom

TC4-19G2+ Details

  • Manufacturer Part Number:

    TC4-19G2+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Cut-off Frequency-Max:

    1900 MHz

  • Cut-off Frequency-Min:

    10 MHz

  • Height:

    3.81 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e4

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm
