TC4-1WG2+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers TC XFMR / SURF MOUNT / RoHS (007)

Download TC4-1WG2+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

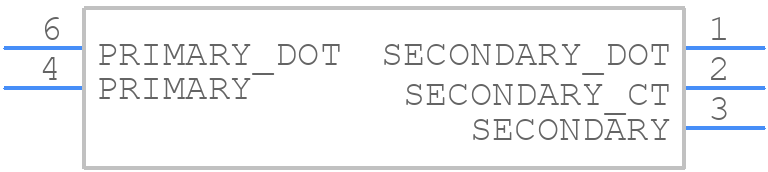

TC4-1WG2+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC4-1WG2+ - Mini-Circuits PCB footprint - Other - Other - TC4-1WG2+-1
click to zoom
3D Models
TC4-1WG2+ - Mini-Circuits - 3D model - Other - TC4-1WG2+-1
click to zoom

TC4-1WG2+ Details

  • Manufacturer Part Number:

    TC4-1WG2+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    HEIGHT & LENGTH DIM INCLUDES TERMINALS ALSO; PACKING ALSO AVAILABLE IN 7 INCH REEL

  • Application:

    MATCHING

  • Cut-off Frequency-Min:

    3 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    3.81 mm

  • Insertion Loss:

    3 dB

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    800000 kHz

  • Operating Frequency-Min:

    3000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC4-1WG2+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TC4-1WG2+ is -40°C to +85°C.
  • Yes, the TC4-1WG2+ is designed to operate in humid environments, but it's recommended to follow proper sealing and conformal coating procedures to ensure reliability.
  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC4-1WG2+ requires a bias voltage of 5V ± 0.5V and a bias current of 100 mA maximum. Ensure that your power supply can provide a stable voltage and current within these specifications.
  • The typical current consumption of the TC4-1WG2+ is around 50-70 mA, depending on the operating frequency and input power level.
