Technical Content
Part Image

TC4-1WX+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers TC XFMR / SURF MT / HAT RoHS

Download TC4-1WX+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

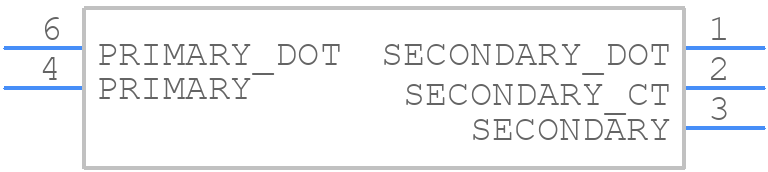

Symbol
TC4-1WX+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
TC4-1WX+ - Mini-Circuits PCB footprint - Other - Other - TC4-1WX+-2
click to zoom
3D Models
TC4-1WX+ - Mini-Circuits - 3D model - Other - TC4-1WX+-2
click to zoom

TC4-1WX+ Details

  • Manufacturer Part Number:

    TC4-1WX+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    800 MHz

  • Cut-off Frequency-Min:

    3 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.06 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    3.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    800000 kHz

  • Operating Frequency-Min:

    3000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    3.81 mm

TC4-1WX+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TC4-1WX+ is -40°C to +85°C.
  • Yes, the TC4-1WX+ is designed to operate in humid environments, but it's recommended to follow proper sealing and conformal coating procedures to ensure reliability.
  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The TC4-1WX+ has a 50-ohm input and output impedance. To impedance-match, use a π-network or T-network topology with resistors and capacitors, and simulate the design using a tool like ADS or AWR Microwave Office.
  • The TC4-1WX+ can handle up to 1W of continuous power, but it's recommended to derate the power handling based on the operating frequency and temperature to ensure reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC4-1WX+ Overview

Use the download button to access the TC4-1WX+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC4-1, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
