TC4001BP(N,F) - Toshiba

Description: Toshiba TC4001BP(N,F), Quad 2-Input NOR Logic Gate, 3 → 18 V, 14-Pin PDIP

Download TC4001BP(N,F) Model

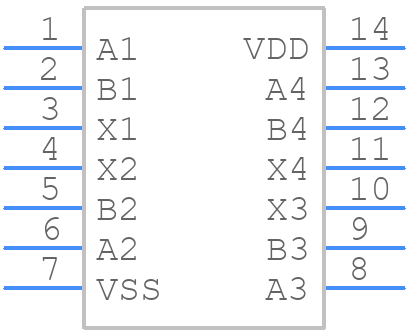

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4001BP(N,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P-DIP14-6.4x19.25-2.54
click to zoom
3D Models
TC4001BP(N,F) - Toshiba  - 3D model - Dual-In-Line Packages - P-DIP14-6.4x19.25-2.54
click to zoom

TC4001BP(N,F) Details

  • Manufacturer Part Number:

    TC4001BP(N,F)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    4.5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NOR GATE

  • Max I(ol):

    0.012 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Prop. Delay@Nom-Sup:

    200 ns

  • Propagation Delay (tpd):

    200 ns

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm
