TC4011BF(F) - Toshiba

Description: Toshiba TC4011BF(F), Quad 2-Input NAND Logic Gate, 14-Pin SOP

Download TC4011BF(F) Model

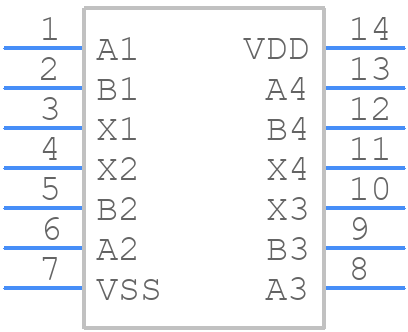

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4011BF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP14-P-300-1.27a-ren1
click to zoom
3D Models
TC4011BF(F) - Toshiba  - 3D model - Small Outline Packages - SOP14-P-300-1.27a-ren1
click to zoom

TC4011BF(F) Details

  • Manufacturer Part Number:

    TC4011BF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NAND GATE

  • Max I(ol):

    0.012 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Prop. Delay@Nom-Sup:

    200 ns

  • Propagation Delay (tpd):

    200 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC4011BF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4011BF(F) is 4.5V to 18V, although it can operate down to 3V with reduced performance.
  • To ensure proper power-on and power-off, the VCC pin should be ramped up and down slowly (typically 10ms or more) to prevent latch-up and ensure reliable operation.
  • The maximum frequency of operation for the TC4011BF(F) is typically 100kHz, although it can operate at higher frequencies with reduced performance and increased power consumption.
  • When input pins are not in use, they should be tied to VCC or GND through a resistor to prevent floating inputs and ensure reliable operation.
  • The maximum output current of the TC4011BF(F) is typically 10mA per output pin, although it can be higher for short periods of time.
