TC4013BF(F) - Toshiba

Description: IC,Logic,4000 series,TC4013BF(F),SOP14

Download TC4013BF(F) Model

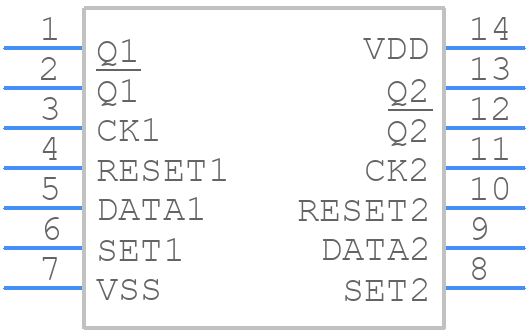

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4013BF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP14-P-300-1.27A
click to zoom
3D Models
TC4013BF(F) - Toshiba  - 3D model - Small Outline Packages - SOP14-P-300-1.27A
click to zoom

TC4013BF(F) Details

  • Manufacturer Part Number:

    TC4013BF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    3500000 Hz

  • Max I(ol):

    0.00061 A

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Prop. Delay@Nom-Sup:

    300 ns

  • Propagation Delay (tpd):

    300 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    12 MHz

TC4013BF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4013BF(F) is 4.5V to 18V, although it can operate up to 20V with reduced performance.
  • To ensure proper power-on and power-off, the VCC pin should be ramped up and down slowly (typically 10ms or more) to prevent latch-up and ensure reliable operation.
  • The maximum frequency of operation for the TC4013BF(F) is typically 10MHz, although this can vary depending on the specific application and operating conditions.
  • Unused inputs on the TC4013BF(F) should be tied to a valid logic level (either VCC or GND) to prevent floating inputs and ensure reliable operation.
  • Yes, the TC4013BF(F) is suitable for high-reliability applications, as it is designed and manufactured to meet the requirements of automotive and industrial applications.
