TC4013BF - Toshiba

Description: Flip Flop 2 Element D-Type 1 Bit Positive Edge 14SOP

Download TC4013BF Model

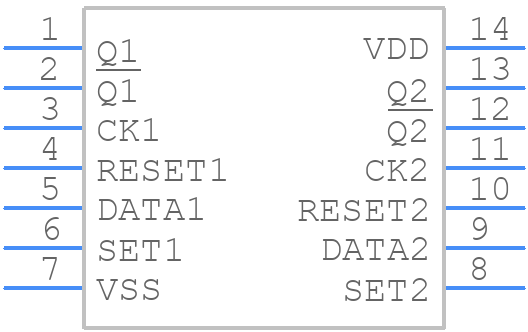

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4013BF - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP14-P-300-1.27A
click to zoom
3D Models
TC4013BF - Toshiba  - 3D model - Small Outline Packages - SOP14-P-300-1.27A
click to zoom

TC4013BF Details

  • Manufacturer Part Number:

    TC4013BF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    3500000 Hz

  • Max I(ol):

    0.012 A

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    0.12 mA

  • Prop. Delay@Nom-Sup:

    300 ns

  • Propagation Delay (tpd):

    300 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    12 MHz

TC4013BF Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4013BF is 4.5V to 18V, although it can operate up to 20V with reduced performance.
  • It is recommended to power up the VCC pin before the clock signal, and power down the clock signal before the VCC pin to prevent unwanted clock transitions.
  • The maximum clock frequency that the TC4013BF can handle is 10MHz, although it can operate at higher frequencies with reduced performance.
  • The TC4013BF has an internal power-on reset (POR) circuit that resets the device after power-up. However, it is recommended to add an external reset circuit to ensure a clean reset signal.
  • The TC4013BF is rated for operation up to 125°C, but its performance may degrade at high temperatures. It is recommended to derate the device's performance and consider using a heat sink if operating in high-temperature environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC4013BF Overview

Use the download button to access the TC4013BF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC401, or try a keyword search, such as FF/Latches
