TC4013BP(F) - Toshiba

Description: Toshiba TC4013BP(F) Dual D Type Flip Flop IC, 14-Pin PDIP

Download TC4013BP(F) Model

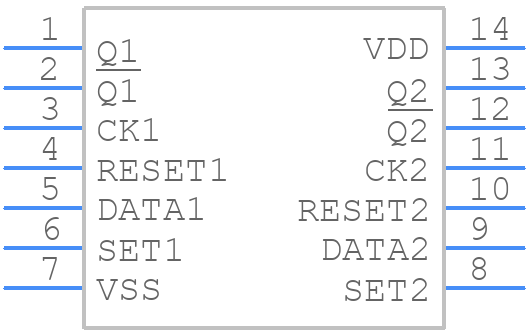

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4013BP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom
3D Models
TC4013BP(F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom

TC4013BP(F) Details

  • Manufacturer Part Number:

    TC4013BP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    4.5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    3500000 Hz

  • Max I(ol):

    0.00061 A

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Prop. Delay@Nom-Sup:

    300 ns

  • Propagation Delay (tpd):

    300 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    12 MHz
