TC4013BP(N,F) - Toshiba

Description: Flip Flops CMOS Logic ICs Standard series

Download TC4013BP(N,F) Model
Schematic

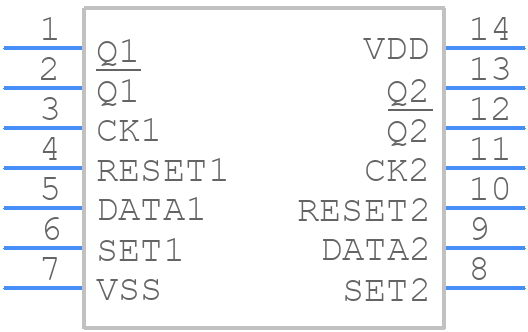

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

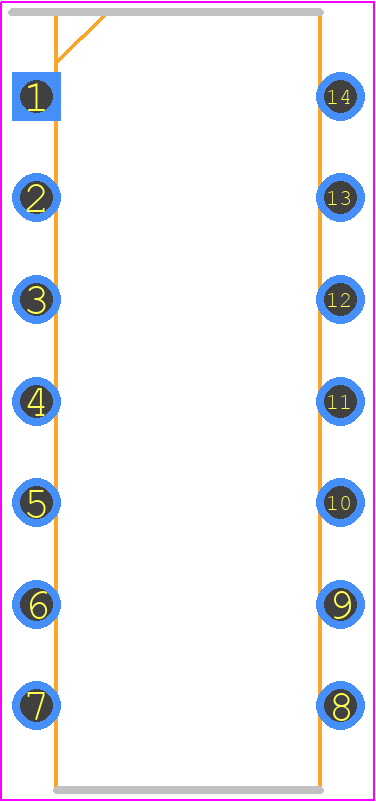

TC4013BP(N,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14-P-300-2.54-1
click to zoom
3D Models
TC4013BP(N,F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP14-P-300-2.54-1
click to zoom

TC4013BP(N,F) Details

  • Manufacturer Part Number:

    TC4013BP(N,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-14

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    3500000 Hz

  • Max I(ol):

    0.012 A

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    0.12 mA

  • Prop. Delay@Nom-Sup:

    300 ns

  • Propagation Delay (tpd):

    300 ns

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    12 MHz

TC4013BP(N,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4013BP is 4.5V to 15V.
  • To ensure proper power-on and power-off, it is recommended to use a power-up and power-down sequence, with VCC rising and falling slowly (typically 10ms or more) to prevent latch-up and ensure reliable operation.
  • The maximum clock frequency supported by the TC4013BP is 10MHz.
  • The output enable (OE) pin should be connected to a logic level (VCC or GND) to enable or disable the output. Leaving the OE pin floating can cause unpredictable behavior.
  • The maximum input voltage that can be applied to the TC4013BP is 15V. Exceeding this voltage can cause damage to the device.
