TC4017BF(N,F) - Toshiba

Description: Toshiba TC4017BF(N,F), 5-stage, Decade, Decade Counter, Up Counter, 3 → 18 V, 16-Pin SOP

Download TC4017BF(N,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

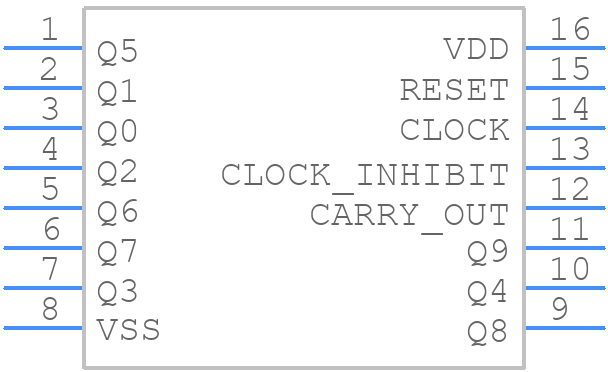

TC4017BF(N,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TC4017BF(N,F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A
click to zoom
3D Models
TC4017BF(N,F) - Toshiba - 3D model - Small Outline Packages - SOP16-P-300-1.27A
click to zoom

TC4017BF(N,F) Details

  • Manufacturer Part Number:

    TC4017BF(N,F)

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • Count Direction:

    UP

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Load/Preset Input:

    NO

  • Logic IC Type:

    RING COUNTER

  • Max Frequency@Nom-Sup:

    2500000 Hz

  • Mode of Operation:

    SYNCHRONOUS

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Prop. Delay@Nom-Sup:

    650 ns

  • Propagation Delay (tpd):

    650 ns

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    5.3 mm

  • fmax-Min:

    2.5 MHz

TC4017BF(N,F) Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the TC4017BF is 10 MHz. However, it's recommended to check the specific application and operating conditions to ensure reliable operation.
  • To ensure proper reset, connect the MR (Master Reset) pin to a logic low level (GND) for at least 10 ns during power-on. This will reset the internal counters and ensure the device starts in a known state.
  • The recommended operating voltage range for the TC4017BF is 4.5V to 15V. Operating outside this range may affect the device's performance and reliability.
  • Yes, the TC4017BF can operate at 3.3V, but it's essential to check the specific application and operating conditions to ensure reliable operation. Additionally, the device's performance may be affected at lower voltages.
  • The OE pin is active low, meaning that when it's low, the outputs are enabled. Connect the OE pin to a logic low level (GND) to enable the outputs, and connect it to a logic high level (VCC) to disable the outputs.
