TC4017BP(N,F) - Toshiba

Description: Toshiba TC4017BP(N,F), 5-stage, Decade, Decade Counter, Up Counter, 3 → 18 V, 16-Pin PDIP

Download TC4017BP(N,F) Model

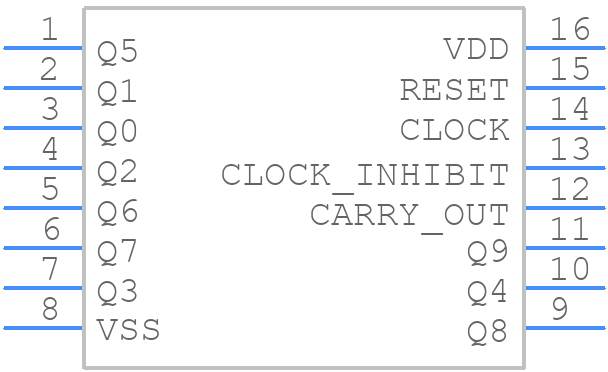

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4017BP(N,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16-P-300-2.54A
click to zoom
3D Models
TC4017BP(N,F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP-16-P-300-2.54A
click to zoom

TC4017BP(N,F) Details

  • Manufacturer Part Number:

    TC4017BP(N,F)

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Count Direction:

    UP

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Load/Preset Input:

    NO

  • Logic IC Type:

    RING COUNTER

  • Max Frequency@Nom-Sup:

    2500000 Hz

  • Max I(ol):

    0.004 A

  • Mode of Operation:

    SYNCHRONOUS

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Prop. Delay@Nom-Sup:

    650 ns

  • Propagation Delay (tpd):

    650 ns

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    6.7 MHz

TC4017BP(N,F) Frequently Asked Questions (FAQs)

  • The TC4017BP can handle clock frequencies up to 10 MHz.
  • To ensure proper reset, connect the MR (Master Reset) pin to VCC through a 1kΩ resistor and a 10nF capacitor to ground. This will ensure that the IC is properly reset after power-on.
  • The recommended operating voltage range for the TC4017BP is 4.5V to 15V.
  • To use the TC4017BP as a decade counter, connect the Q0 output to the CLK input, and use the Q3 output as the carry-out signal. This will allow the IC to count from 0 to 9.
  • The TC4017BP can sink or source up to 1.6mA of current per output pin.
