0.300 INCH, 2.54 MM PITCH, LEAD FREE, PLASTIC, DIP-16
Pin Count:
16
HTS Code:
8542.39.00.60
Manufacturer:
Toshiba America Electronic Components
YTEOL:
4.5
Count Direction:
UP
Family:
4000/14000/40000
JESD-30 Code:
R-PDIP-T16
Length:
19.25 mm
Load Capacitance (CL):
50 pF
Load/Preset Input:
NO
Logic IC Type:
BINARY COUNTER
Max Frequency@Nom-Sup:
3500000 Hz
Max I(ol):
0.00061 A
Mode of Operation:
ASYNCHRONOUS
Number of Bits:
12
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP16,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Prop. Delay@Nom-Sup:
360 ns
Propagation Delay (tpd):
1800 ns
Qualification Status:
Not Qualified
Seated Height-Max:
4.45 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Trigger Type:
NEGATIVE EDGE
Width:
7.62 mm
fmax-Min:
12 MHz
TC4040BP Frequently Asked Questions (FAQs)
The recommended operating voltage range for the TC4040BP is 4.5V to 5.5V, although it can operate from 3V to 6V with reduced performance.
To ensure proper power-on and power-off, it's recommended to use a power-on reset circuit and a capacitor between VCC and GND to filter out noise and voltage spikes.
The TC4040BP can operate at clock frequencies up to 10MHz, but it's recommended to use a clock frequency of 4MHz or less for optimal performance and to minimize power consumption.
The TC4040BP's output voltage levels are TTL-compatible, with a high level of 2.4V minimum and a low level of 0.4V maximum. Ensure that the receiving device can handle these voltage levels or use a level shifter if necessary.
The OE pin is used to enable or disable the output drivers. When OE is low, the outputs are enabled, and when OE is high, the outputs are high-impedance (tri-stated).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC4040BP Overview

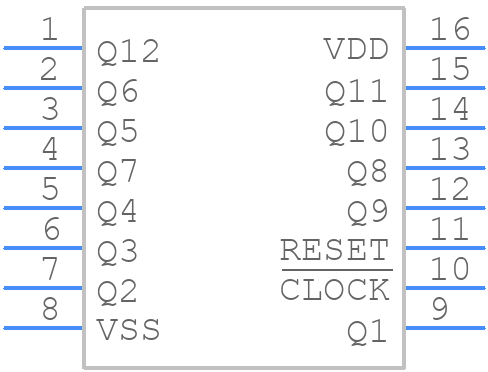

Use the download button to access the TC4040BP schematic symbol, PCB footprint, and 3D model.
