TC4044BP(N,F) - Toshiba

Description: Quad SR Type Latch, 3 State, 3 → 18 V, 16-Pin PDIP

Download TC4044BP(N,F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TC4044BP(N,F) model

Email notifications will be applied after download.

Send part feedback

Symbol

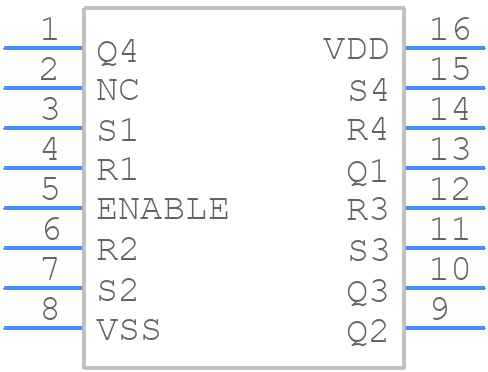

TC4044BP(N,F) - Toshiba - PCB symbol

PCB Footprints

TC4044BP(N,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16-P-300-2.54A_3

3D Models

TC4044BP(N,F) - Toshiba - 3D model - Dual-In-Line Packages - DIP-16-P-300-2.54A_3

Datasheet Download Datasheet
Stock & Prices Price & Stock for TC4044BP(N,F)
Part Number TC4044BP(N,F)
Manufacturer Toshiba
Pin Count 16
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP-16-P-300-2.54A_3
Released Date Apr 13, 2022
Last Modified Date Sep 10, 2024 7:45 AM UTC
Pinout / Pin List Click Here (Member Only)

TC4044BP(N,F) Details

Manufacturer Part Number:
TC4044BP(N,F)
Manufacturer:
Toshiba America Electronic Components

Trust Checks

Expert Contribution

System Verified

Community Approved

TC4044BP(N,F) Overview

Use the download button to access the TC4044BP(N,F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TC404, or try a keyword search, such as FF/Latches
