TC4049BF(F) footprint, schematic symbol and 3D model by Toshiba

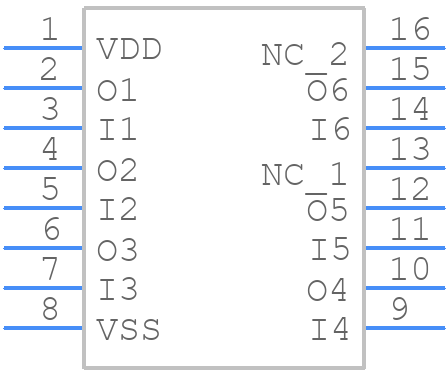

Symbol

PCB Footprints

3D Models

TC4049BF(F) Details

The recommended operating voltage range for the TC4049BF(F) is 3V to 18V, although it can operate up to 20V with reduced performance.
To ensure linear operation, the TC4049BF(F) should be biased with a voltage divider network that sets the input voltage to around 1/2 of the supply voltage, and the output voltage should be decoupled with a capacitor to prevent oscillations.
The maximum power dissipation of the TC4049BF(F) is 500mW, and it is recommended to keep the junction temperature below 150°C to ensure reliable operation.
Yes, the TC4049BF(F) can be used as a comparator, but it is not recommended due to its limited common-mode input voltage range and lack of hysteresis. A dedicated comparator IC like the LM339 or TLC372 is a better choice for comparator applications.
To reduce noise and oscillations in the TC4049BF(F) output, use a decoupling capacitor (e.g. 10nF to 100nF) between the output pin and ground, and consider adding a small resistor (e.g. 100Ω to 1kΩ) in series with the output pin to dampen oscillations.

Community Provided

System Verified

Community Approved

Use the download button to access the TC4049BF(F) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TC404, or try a keyword search, such as Gates
