TC4051BP(N,F) - Toshiba

Description: Toshiba TC4051BP(N,F), Multiplexer/Demultiplexer Single 8:1, 12 V, 15 V, 5 V, 9 V, 16-Pin PDIP

Download TC4051BP(N,F) Model

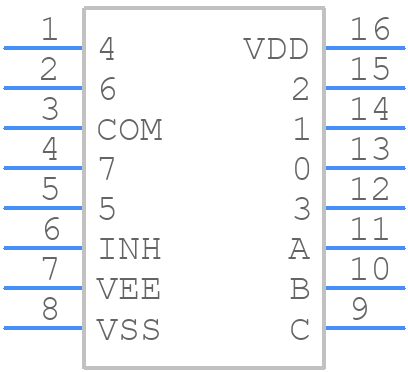

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4051BP(N,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16-P-300-2.54A_1-1
click to zoom
3D Models
TC4051BP(N,F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP-16-P-300-2.54A_1-1
click to zoom

TC4051BP(N,F) Details

  • Manufacturer Part Number:

    TC4051BP(N,F)

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Additional Feature:

    LG-MAX

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.75 mm

  • Number of Channels:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    1200 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    450 ns

  • Switch-on Time-Max:

    380 ns

  • Technology:

    CMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TC4051BP(N,F) Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TC4051BP is 10 MHz.
  • Yes, the TC4051BP can be used as a level shifter, but it's not recommended as it's primarily designed as an analog multiplexer/demultiplexer.
  • The maximum voltage rating for the analog signals is VCC + 0.3V, but it's recommended to keep it within VCC + 0.1V for reliable operation.
  • To ensure low power consumption in standby mode, make sure to set the enable input (EN) to a logic low and the address inputs (A0-A2) to a logic high.
  • Yes, the TC4051BP can operate with a 5V power supply, but it's recommended to use a 3.3V or lower power supply for optimal performance and reduced power consumption.
