TC4052BP(F) - Toshiba

Description: Toshiba TC4052BP(F), Multiplexer/Demultiplexer Dual 4:1, 12 V, 15 V, 5 V, 9 V, 16-Pin PDIP

Download TC4052BP(F) Model

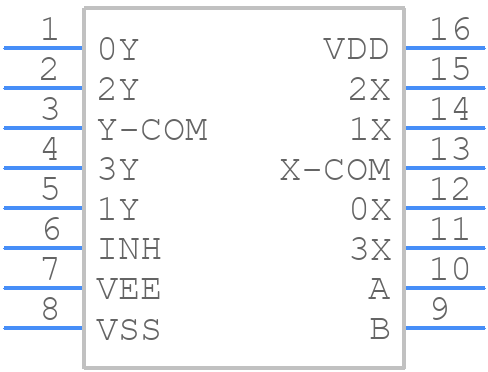

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4052BP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16-P-300-2.54A
click to zoom
3D Models
TC4052BP(F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP-16-P-300-2.54A
click to zoom

TC4052BP(F) Details

  • Manufacturer Part Number:

    TC4052BP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, 2.54 MM PITCH, PLASTIC, DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.3

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.25 mm

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    950 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    450 ns

  • Switch-on Time-Max:

    380 ns

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

TC4052BP(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4052BP(F) is 3.0V to 18V, although the device can operate up to 20V with reduced performance.
  • To ensure correct switching, the input voltage levels should be within the specified VIH (2.0V) and VIL (0.8V) ranges, and the input rise and fall times should be less than 100ns.
  • The TC4052BP(F) can source up to 50mA and sink up to 50mA per channel, although it's recommended to limit the current to 20mA per channel for reliable operation.
  • It's recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin after removing all input signals to prevent unwanted switching.
  • The TC4052BP(F) can operate up to 10MHz, although the maximum frequency may be limited by the specific application and layout.
