Part Image

TC4053BF(F) - Toshiba

Description: Toshiba TC4053BF(F), Multiplexer/Demultiplexer Triple 2:1, 12 V, 15 V, 5 V, 9 V, 16-Pin SOP

Download TC4053BF(F) Model

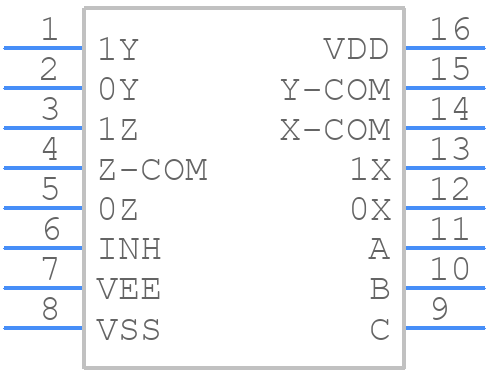

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4053BF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A
click to zoom
3D Models
TC4053BF(F) - Toshiba  - 3D model - Small Outline Packages - SOP16-P-300-1.27A
click to zoom

TC4053BF(F) Details

  • Manufacturer Part Number:

    TC4053BF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.15

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Normal Position:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    1200 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-on Time-Max:

    550 ns

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

TC4053BF(F) Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TC4053BF(F) is 10 MHz, but it can be used at higher frequencies with proper PCB design and layout.
  • To ensure the analog switches are properly turned on and off, make sure to provide a clean and stable digital control signal to the device, and use a pull-up or pull-down resistor to define the state of the switch when the control signal is high-impedance.
  • The maximum voltage rating for the analog signals is VCC + 0.3V, but it's recommended to keep the analog signal voltage within the VCC and GND rails to ensure proper operation.
  • Yes, the TC4053BF(F) can be used as a digital switch, but it's not recommended as it's designed for analog signal switching. If you need to switch digital signals, consider using a dedicated digital switch or multiplexer.
  • To minimize power consumption when the device is not in use, consider using a power-down mode or shutting off the VCC supply to the device. Additionally, use a low-power mode or reduce the clock frequency to minimize power consumption during operation.
