TC4053BF - Toshiba

Description: TC4051B, TC4052B and TC4053B are multiplexers with capabilities of selection and mixture of analog signal and digital signal. TC4051B has 8 channels configuration. TC4052B has 4 channel × 2 configuration and TC4053B has 2 channel × 3 configuration. The digital signal to the control terminal turns “ON” the corresponding switch of each channel, with large amplitude (VDD − VEE) can be switched by the control signal with small logical amplitude (VDD − VSS). For example, in the case of VDD = 5 V VSS = 0

Download TC4053BF Model

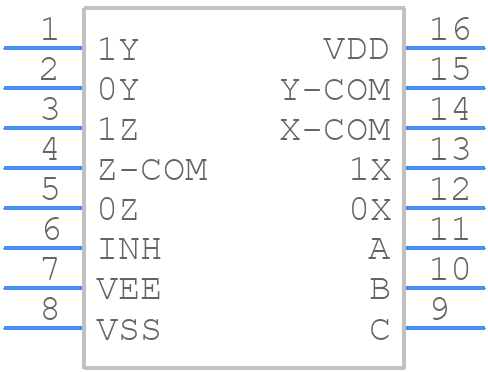

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4053BF - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A
click to zoom
3D Models
TC4053BF - Toshiba  - 3D model - Small Outline Packages - SOP16-P-300-1.27A
click to zoom

TC4053BF Details

  • Manufacturer Part Number:

    TC4053BF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.15

  • Additional Feature:

    ALSO AVAILABLE IN LEADED PACKAGE SOP16-P-300-1.27

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Normal Position:

    NO

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    1200 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    450 ns

  • Switch-on Time-Max:

    380 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5.3 mm

TC4053BF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TC4053BF is 10 MHz, but it can be used at higher frequencies with proper PCB design and layout considerations.
  • To ensure the analog switches are properly turned on and off, make sure to provide a clean and stable digital control signal to the control inputs (S1, S2, and S3). Also, ensure that the voltage supply (VCC) is within the recommended operating range (4.5V to 16V) and that the control signals are within the recommended logic levels (VIL and VIH).
  • The maximum current rating of the analog switches in the TC4053BF is 30mA per channel. Exceeding this current rating may cause damage to the device or affect its performance.
  • To minimize power consumption when the device is not in use, consider using the shutdown pin (SHDN) to put the device in a low-power standby mode. This can reduce the quiescent current to less than 1uA.
  • To ensure proper operation and minimize noise and interference, follow good PCB design practices such as using a solid ground plane, keeping signal traces short and away from power traces, and using bypass capacitors to decouple the power supply.
