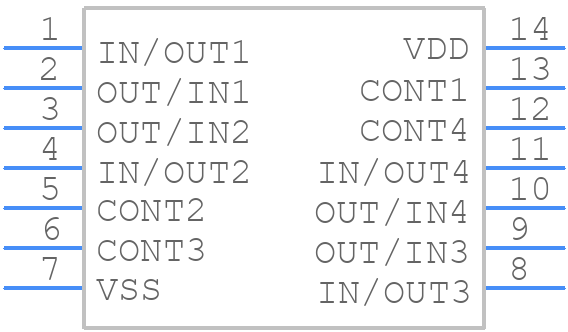

TC4066BFT - Toshiba

TC4066BFT Details

• Manufacturer Part Number:

  TC4066BFT

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP-14

• Pin Count:

  14

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6.58

• Analog IC - Other Type:

  SPST

• JESD-30 Code:

  R-PDSO-G14

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Normal Position:

  NO

• Number of Channels:

  1

• Number of Functions:

  4

• Number of Terminals:

  14

• On-state Resistance Match-Nom:

  10 Ω

• On-state Resistance-Max (Ron):

  950 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Current-Max (Isup):

  0.03 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  120 ns

• Switch-on Time-Max:

  120 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
