TC4066BP(N,F) - Toshiba

Description: Toshiba TC4066BP(N,F), Multiplexer Quad SPST, 12 V, 15 V, 5 V, 9 V, 14-Pin PDIP

Download TC4066BP(N,F) Model

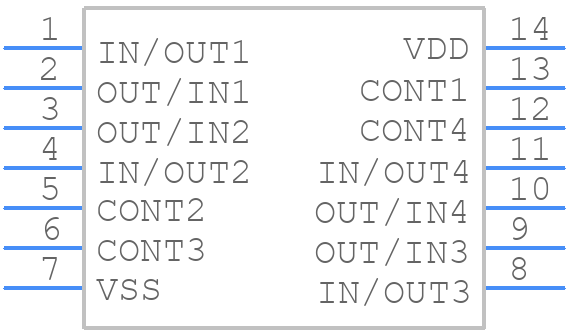

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4066BP(N,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom
3D Models
TC4066BP(N,F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom

TC4066BP(N,F) Details

  • Manufacturer Part Number:

    TC4066BP(N,F)

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    1200 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    80 ns

  • Switch-on Time-Max:

    120 ns

  • Technology:

    CMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TC4066BP(N,F) Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TC4066BP is 10 MHz, but it can vary depending on the application and the load capacitance.
  • The TC4066BP requires a single power supply voltage (VCC) of 4.5V to 15V, and it's recommended to use a decoupling capacitor (e.g., 0.1uF) close to the VCC pin to reduce noise and ensure stable operation.
  • The maximum current rating of the TC4066BP is 100mA per channel, but it's recommended to keep the current below 50mA per channel to ensure reliable operation.
  • The enable input (EN) is active-low, meaning it should be connected to GND to enable the device. When EN is high, the device is in a high-impedance state, and the switches are turned off.
  • The propagation delay of the TC4066BP is typically around 10ns to 20ns, depending on the operating frequency and load capacitance.
