The recommended operating voltage range for the TC4069UBF is 3V to 18V, although it can operate up to 20V with reduced performance.
To ensure the TC4069UBF is properly biased for CMOS logic levels, connect the VDD pin to a stable voltage source (e.g., 5V) and the VSS pin to ground. This will allow the device to operate within the specified logic levels.
The maximum frequency of operation for the TC4069UBF is typically around 10MHz, although this can vary depending on the specific application and operating conditions.
To handle thermal considerations for the TC4069UBF, ensure good thermal conduction between the device and the PCB, and avoid operating the device at high temperatures (above 125°C) for extended periods.
While the TC4069UBF is a general-purpose device, it may not be suitable for high-reliability or high-temperature applications. For such applications, consider using a more specialized device or consulting with a Toshiba representative for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC4069UBF Overview

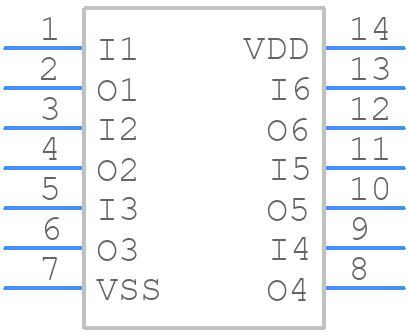

Use the download button to access the TC4069UBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC406,
or try a keyword search, such as Gates
