TC4081BP(F) - Toshiba

Description: Toshiba TC4081BP(F), Quad 2-Input AND Logic Gate, 14-Pin PDIP

Download TC4081BP(F) Model

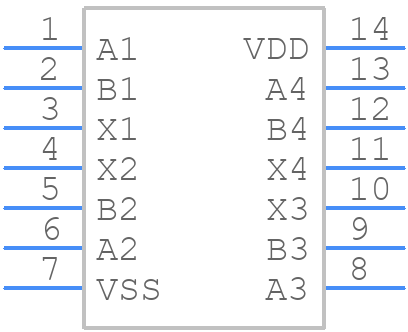

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4081BP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom
3D Models
TC4081BP(F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom

TC4081BP(F) Details

  • Manufacturer Part Number:

    TC4081BP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    AND GATE

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Prop. Delay@Nom-Sup:

    200 ns

  • Propagation Delay (tpd):

    200 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TC4081BP(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4081BP(F) is 4.5V to 18V, although the device can operate up to 20V with reduced performance.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground. Additionally, decouple the VCC pin with a 0.1uF capacitor to reduce noise and ensure stable operation.
  • The maximum output current of the TC4081BP(F) is 1A per channel, but it's recommended to limit the output current to 500mA per channel for reliable operation.
  • To prevent overheating, ensure good thermal conduction by mounting the device on a heat sink or a PCB with a large copper area. Also, keep the ambient temperature below 70°C and avoid high-power operation for extended periods.
  • While the TC4081BP(F) is not designed for high-frequency applications, it can operate up to 100kHz. However, the device's performance may degrade at higher frequencies due to internal capacitances and resistances. For high-frequency applications, consider using a more suitable device.
