TC4081BP - Toshiba

Description: Quad 2-Input/AND, DIP14 CMOS Digital Integrated Circuit Silicon Monolithic

Download TC4081BP Model

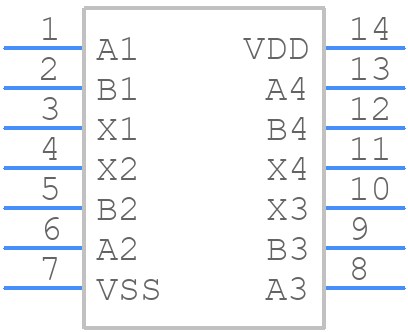

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4081BP - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom
3D Models
TC4081BP - Toshiba  - 3D model - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom

TC4081BP Details

  • Manufacturer Part Number:

    TC4081BP

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    4.5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    AND GATE

  • Max I(ol):

    0.012 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    0.03 mA

  • Prop. Delay@Nom-Sup:

    200 ns

  • Propagation Delay (tpd):

    200 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

TC4081BP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4081BP is 4.5V to 15V, although it can operate up to 18V with reduced performance.
  • To ensure linear operation, the TC4081BP requires a minimum of 2.5V between the input and output pins (VCC - VIN). Additionally, the output voltage should be at least 2V above the input voltage.
  • The TC4081BP can deliver up to 1A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. Refer to the datasheet for specific current limits.
  • To prevent overheating, ensure proper heat sinking, keep the device away from high-temperature sources, and avoid operating the device at maximum ratings for extended periods. Monitor the junction temperature (TJ) and reduce the output current if necessary.
  • While the TC4081BP can be used as a voltage regulator, it is not designed for this purpose. The device is intended for audio and general-purpose amplification applications. For voltage regulation, consider using a dedicated voltage regulator IC.
