- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TC4420VPA
- Part Number TC4420VPA
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 8 pdip
- Released Date Jan 19, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TC4420VPA Details
-
Manufacturer Part Number:
TC4420VPA
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Package Description:
0.300 INCH, PLASTIC, MS-001, DIP-8
-
Pin Count:
8
-
Manufacturer Package Code:
PDIP-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
8 Weeks
TC4420VPA Frequently Asked Questions (FAQs)
-
The maximum voltage rating for the input pins (IN+ and IN-) is 7V, which is the absolute maximum rating. However, for normal operation, the input voltage should be limited to VCC + 0.3V to ensure proper operation.
-
To ensure the output stage is properly biased, make sure to connect the output stage supply pins (VDD and VSS) to a stable voltage source, and decouple them with a 0.1uF ceramic capacitor to ground. This will help to reduce noise and ensure proper operation.
-
The recommended value for the pull-up resistor on the output stage (RPU) is between 1kΩ to 10kΩ. A lower value will increase the output current, but may also increase power consumption. A higher value will reduce power consumption, but may also reduce the output current.
-
The TC4420VPA has a built-in thermal shutdown feature that will shut down the device if the junction temperature exceeds 150°C. To handle this feature, ensure proper heat sinking and thermal management, and consider adding a thermal monitoring circuit to detect and respond to thermal shutdown events.
-
The maximum output current capability of the TC4420VPA is 1.5A per channel, with a total current limit of 3A for both channels combined. However, the actual output current capability will depend on the specific application, PCB layout, and thermal management.
Trust Checks
Expert Contribution
System Verified
Community Approved
TC4420VPA Overview

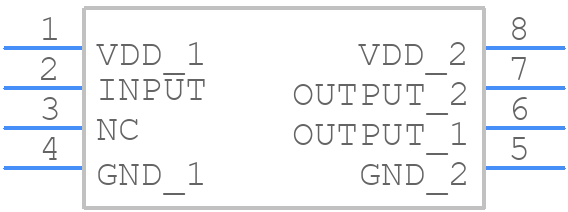

Use the download button to access the TC4420VPA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC442,
or try a keyword search, such as MOSFET Drivers
