- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TC4426AVPA
- Part Number TC4426AVPA
- Manufacturer Microchip
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - Plastic DIP (300 mil Body), 8-lead
- Released Date May 28, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TC4426AVPA Details
-
Manufacturer Part Number:
TC4426AVPA
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Package Description:
0.300 INCH, LEAD FREE, PLASTIC, MS-001, DIP-8
-
Pin Count:
8
-
Manufacturer Package Code:
PDIP-8
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
11 Weeks
TC4426AVPA Frequently Asked Questions (FAQs)
-
The maximum voltage rating for the input pins (IN+ and IN-) is 7V, which is the absolute maximum rating. However, for normal operation, the input voltage should be limited to VCC + 0.3V to ensure proper operation.
-
To ensure the output stage is properly biased, make sure to connect the output pins (OUT+ and OUT-) to a load impedance that is within the recommended range (e.g., 1kΩ to 10kΩ). Also, ensure that the output voltage swing is within the specified range (e.g., 0V to VCC - 1.5V).
-
For optimal performance, it is recommended to follow good PCB layout and routing practices, such as keeping the input and output traces short and separate, using a solid ground plane, and avoiding vias and right-angle bends in the signal traces. Additionally, place the device close to the load and use a low-ESR capacitor (e.g., 10nF to 100nF) between VCC and GND to filter out noise and reduce ringing.
-
To handle thermal considerations, ensure that the device is mounted on a PCB with a good thermal conductivity (e.g., FR4 or better). Also, provide adequate heat sinking, such as a copper pour or a heat sink, to dissipate heat generated by the device. Finally, follow the recommended operating conditions and avoid exceeding the maximum junction temperature (TJ) of 150°C.
-
The recommended input signal frequency range for the TC4426AVPA is up to 10MHz. However, the device can operate at higher frequencies, but the output signal amplitude and rise/fall times may be affected. For frequencies above 10MHz, it is recommended to consult the datasheet and application notes for specific guidance.
Trust Checks
Expert Contribution
System Verified
Community Approved
TC4426AVPA Overview

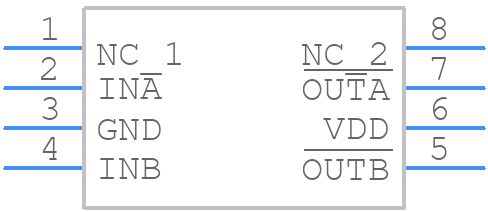

Use the download button to access the TC4426AVPA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC442,
or try a keyword search, such as MOSFET Drivers
