TC4467CPD - Microchip

Description: Microchip TC4467CPD, Quad MOSFET Power Driver 1.2A, 4.5 → 18 V, Inverting, 14-Pin PDIP

Download TC4467CPD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

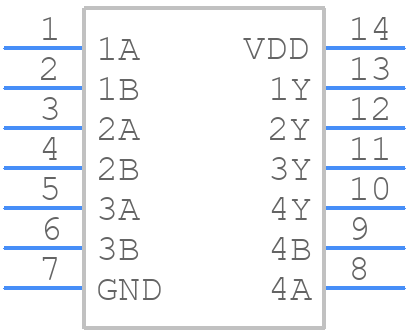

TC4467CPD - Microchip - PCB symbol
click to zoom
PCB Footprints

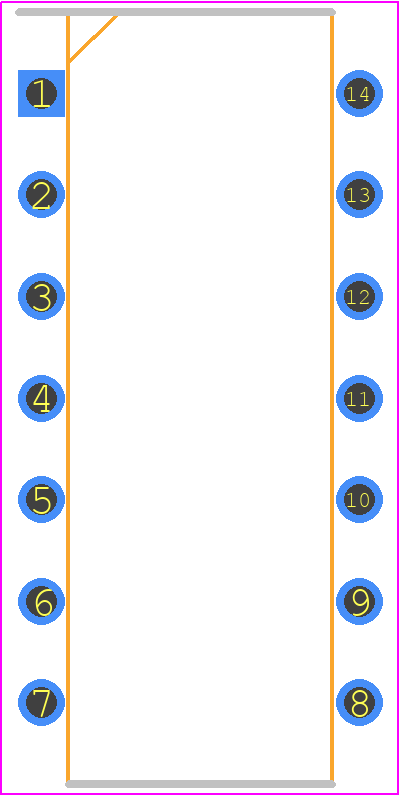

TC4467CPD - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14-Lead 300 mil 4468 Body PDIP
click to zoom
3D Models
TC4467CPD - Microchip - 3D model - Dual-In-Line Packages - 14-Lead 300 mil 4468 Body PDIP
click to zoom

TC4467CPD Details

  • Manufacturer Part Number:

    TC4467CPD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    PDIP-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    NAND GATE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1.2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    4.32 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.15 µs

  • Turn-on Time:

    0.15 µs

  • Width:

    7.62 mm

TC4467CPD Frequently Asked Questions (FAQs)

  • Microchip recommends following a star-grounding topology, keeping the power and ground traces separate, and using a solid ground plane to minimize EMI and noise. Additionally, keep the input and output traces away from each other and use shielding if possible.
  • The TC4467CPD has a thermal pad on the bottom of the package. Ensure good thermal contact between the pad and a heat sink or a thermal via to the PCB ground plane. Also, keep the ambient temperature within the recommended operating range and avoid overheating the device.
  • The maximum allowed voltage on the input pins of the TC4467CPD is 7V, which is the absolute maximum rating. However, for normal operation, the input voltage should be within the recommended range of 4.5V to 5.5V.
  • Yes, the TC4467CPD is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard and is designed to operate in harsh environments. However, ensure that the device is used within its recommended operating conditions and follows the recommended design and layout guidelines.
  • Start by verifying the power supply voltage and ensuring it is within the recommended range. Check the input signals and ensure they are within the recommended voltage levels. Use an oscilloscope to verify the output signals and check for any signs of oscillation or noise. If the issue persists, consult the Microchip support resources or contact their technical support team.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC4467CPD Overview

Use the download button to access the TC4467CPD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC446, or try a keyword search, such as MOSFET Drivers
