TC4468CPD - Microchip

Description: Microchip TC4468CPD, Quad MOSFET Power Driver 1.2A, 4.5 → 18 V, Non-Inverting, 14-Pin PDIP

Download TC4468CPD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

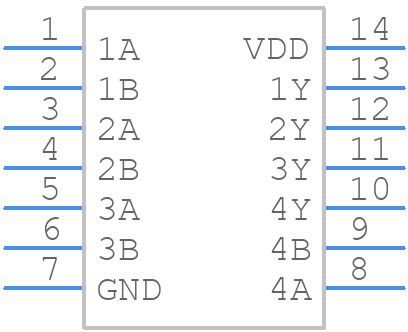

TC4468CPD - Microchip - PCB symbol
click to zoom
PCB Footprints

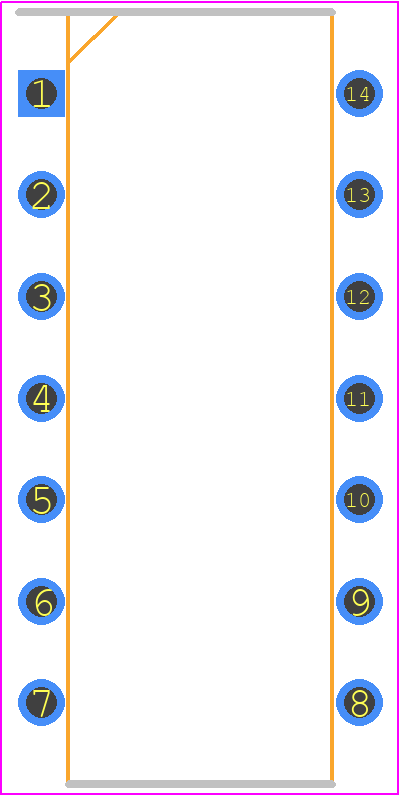

TC4468CPD - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14-Lead 300 mil 4468 Body PDIP
click to zoom
3D Models
TC4468CPD - Microchip - 3D model - Dual-In-Line Packages - 14-Lead 300 mil 4468 Body PDIP
click to zoom

TC4468CPD Details

  • Manufacturer Part Number:

    TC4468CPD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    PDIP-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    AND GATE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1.2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    4.32 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.15 µs

  • Turn-on Time:

    0.15 µs

  • Width:

    7.62 mm

TC4468CPD Frequently Asked Questions (FAQs)

  • The TC4468CPD can operate up to 100 kHz, but the maximum frequency is dependent on the specific application and layout.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as using a heat sink and ensuring good airflow. Additionally, the device should be operated within its specified temperature range of -40°C to +125°C.
  • To minimize EMI, it is recommended to follow good layout and routing practices, such as keeping the power and ground traces separate, using a solid ground plane, and minimizing the length of high-frequency traces. Additionally, it is recommended to use a shielded enclosure and to follow proper electromagnetic compatibility (EMC) guidelines.
  • To troubleshoot issues with the TC4468CPD, it is recommended to follow a systematic approach, such as checking the power supply, verifying the input signals, and using oscilloscopes or logic analyzers to debug the issue. Additionally, it is recommended to consult the datasheet and application notes for troubleshooting guidance.
  • To ensure reliable operation, it is recommended to use proper power supply decoupling and filtering techniques, such as using ceramic capacitors and ferrite beads to filter out noise and ripple. Additionally, it is recommended to follow good power supply design practices, such as using a low-dropout regulator and ensuring a stable voltage supply.
