Microchip recommends following good PCB design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and loops. Additionally, placing the device near the power source and using a common mode choke can help reduce EMI.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to +125°C). Also, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device temperature within a safe operating range.
When selecting external components, consider factors such as tolerance, temperature coefficient, and power rating. For resistors, choose ones with low temperature coefficients and high power ratings. For capacitors, select ones with low equivalent series resistance (ESR) and high capacitance values.
To troubleshoot issues with the TC4469EPD, start by verifying the power supply voltage and ensuring that the device is properly configured. Check for proper pin connections, and verify that the input and output signals are within the specified ranges. Use oscilloscopes or logic analyzers to debug the device's behavior and identify the root cause of the issue.
When using the TC4469EPD in a system with multiple power domains, ensure that the device is properly isolated from other power domains using techniques such as level shifting, voltage translation, or optical isolation. This is crucial to prevent voltage conflicts and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC4469EPD Overview

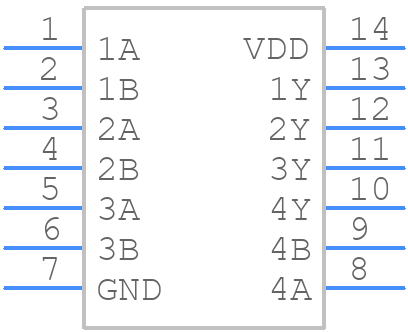

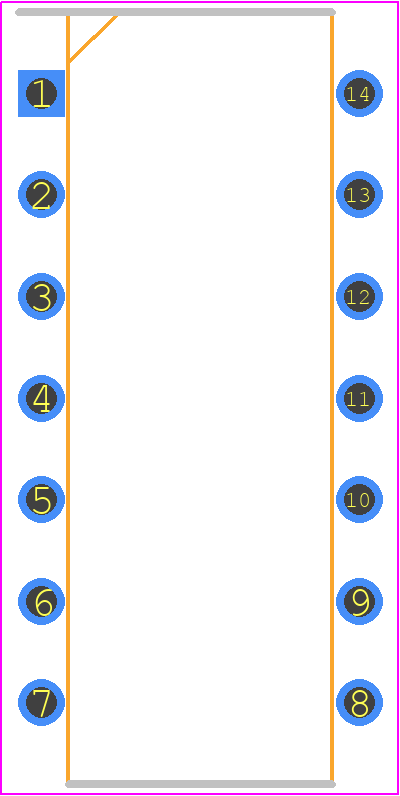

Use the download button to access the TC4469EPD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TC446,
or try a keyword search, such as MOSFET Drivers
