TC4511BP(F) - Toshiba

Description: IC, CMOS, 4000B series logic Toshiba TC4511BP(F), Decoder, Driver, Non-Inverting, 3 → 18 V, 16-Pin PDIP

Download TC4511BP(F) Model

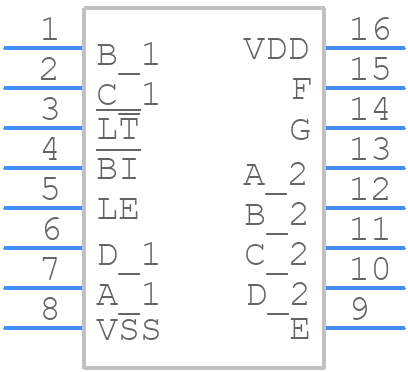

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4511BP(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP16
click to zoom
3D Models
TC4511BP(F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP16
click to zoom

TC4511BP(F) Details

  • Manufacturer Part Number:

    TC4511BP(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5

  • Additional Feature:

    COMMON-CATHODE

  • Data Input Mode:

    PARALLEL

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.25 mm

  • Multiplexed Display Capability:

    NO

  • Number of Digits/Characters:

    1-DIGIT

  • Number of Functions:

    1

  • Number of Segments:

    7

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TC4511BP(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4511BP(F) is 4.5V to 5.5V, although it can operate from 3V to 6V with reduced performance.
  • To ensure proper power-up and initialization, apply a stable voltage supply, and then apply a high-to-low transition on the CS (Chip Select) pin. This will reset the device and prepare it for operation.
  • The TC4511BP(F) supports clock frequencies up to 5 MHz, but it's recommended to operate at 1 MHz or lower for reliable operation.
  • To handle bus contention, use a bus arbiter or a multiplexer to ensure only one device is active on the bus at a time. Additionally, use the TC4511BP(F)'s built-in arbitration logic to resolve bus contention.
  • The WP pin is used to protect the device from accidental writes. When WP is high, the device is in write-protect mode, and any write attempts will be ignored. To use WP, connect it to VCC or a logic high signal to enable write protection.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC4511BP(F) Overview

Use the download button to access the TC4511BP(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC451, or try a keyword search, such as Display Drivers
