TC4538BF(F) - Toshiba

Description: Toshiba TC4538BF(F), Dual Monostable Multivibrator, 16-Pin SOP

Download TC4538BF(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

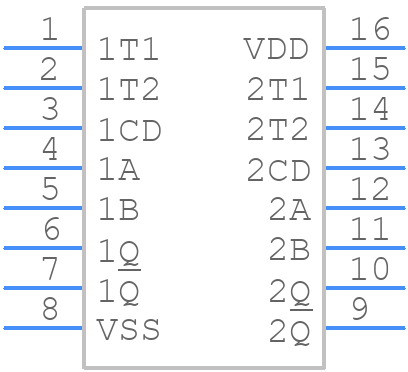

Symbol
TC4538BF(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TC4538BF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP16-P-300-1.27A
click to zoom
3D Models
TC4538BF(F) - Toshiba - 3D model - Small Outline Packages - SOP16-P-300-1.27A
click to zoom

TC4538BF(F) Details

  • Manufacturer Part Number:

    TC4538BF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Number of Data/Clock Inputs:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Propagation Delay (tpd):

    760 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC4538BF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4538BF(F) is 4.5V to 18V, although it can operate up to 20V with reduced performance.
  • To ensure high-speed operation, the TC4538BF(F) requires a bias voltage of at least 2V above the input signal amplitude. Additionally, the input signal should be terminated with a 50Ω resistor to prevent reflections.
  • The TC4538BF(F) supports data rates up to 100Mbps, making it suitable for high-speed applications such as video and audio transmission.
  • The output enable (OE) pin should be connected to a logic high (VCC) to enable the output, and a logic low (GND) to disable the output. When OE is low, the output is in a high-impedance state, allowing multiple devices to share the same bus.
  • The VCC pin is the power supply pin for the TC4538BF(F). It should be connected to a stable voltage source between 4.5V and 18V, with a decoupling capacitor (e.g., 0.1μF) to filter out noise and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC4538BF(F) Overview

Use the download button to access the TC4538BF(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC453, or try a keyword search, such as Prescaler/Multivibrators
