The recommended operating voltage range for the TC4584BF is 4.5V to 18V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 4.2V to 20V for short periods, but prolonged operation outside the recommended range may affect its performance and lifespan.
To ensure proper power-on and power-off sequencing, it's recommended to follow the guidelines outlined in the datasheet. Specifically, the VCC pin should be powered on before the VIN pin, and the VIN pin should be powered off before the VCC pin. This sequencing helps prevent damage to the device and ensures reliable operation.
The maximum current rating for the TC4584BF is 1A, as specified in the datasheet. However, it's essential to consider the device's thermal characteristics and ensure proper heat dissipation to prevent overheating, especially in high-current applications.
The TC4584BF is rated for operation up to 85°C (junction temperature). While it can tolerate higher temperatures for short periods, prolonged exposure to high temperatures may affect its performance and lifespan. It's essential to ensure proper heat dissipation and consider the device's thermal characteristics in high-temperature applications.
To prevent electrostatic discharge (ESD) damage, it's essential to handle the TC4584BF with proper ESD protection measures, such as using an anti-static wrist strap, mat, or workstation. Additionally, ensure that the device is stored in an anti-static bag or container when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC4584BF(EL,N,F) Overview

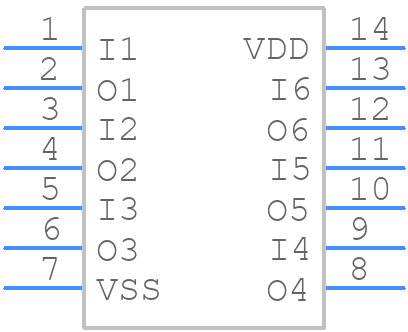

Use the download button to access the TC4584BF(EL,N,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC458,
or try a keyword search, such as Gates
