TC4584BF(F) - Toshiba

Description: C-MOS,Standard,Series,Hex,Schmitt,Trigge Toshiba TC4584BF(F), Hex Schmitt Trigger CMOS Inverter, 3 → 18 V, 14-Pin SOP

Download TC4584BF(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

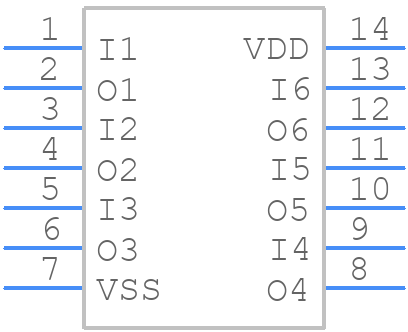

Symbol
TC4584BF(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TC4584BF(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOP14-P-300-1.27A
click to zoom
3D Models
TC4584BF(F) - Toshiba - 3D model - Small Outline Packages - SOP14-P-300-1.27A
click to zoom

TC4584BF(F) Details

  • Manufacturer Part Number:

    TC4584BF(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    10.3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Max I(ol):

    0.015 A

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Prop. Delay@Nom-Sup:

    340 ns

  • Propagation Delay (tpd):

    340 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    YES

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

TC4584BF(F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4584BF(F) is 4.5V to 18V, although the device can operate up to 20V with reduced performance.
  • To ensure proper power-up and initialization, apply a power-on reset (POR) signal to the VCC pin, and then wait for the internal voltage regulator to stabilize before applying input signals.
  • The maximum output current capability of the TC4584BF(F) is 100mA per channel, although it's recommended to limit the output current to 50mA per channel for reliable operation.
  • To handle thermal management, ensure good heat dissipation by providing a heat sink or a thermal pad on the PCB, and avoid operating the device at high temperatures (above 85°C) for extended periods.
  • For optimal performance, follow a star-connection layout for the power supply pins, keep the input and output traces short and separate, and avoid routing high-frequency signals near the device.
