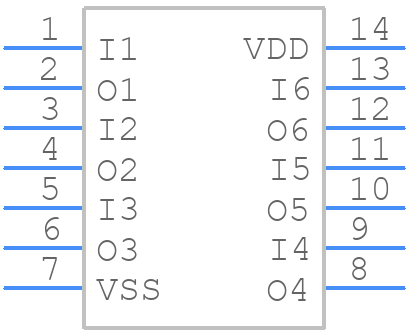

TC4584BF - Toshiba

TC4584BF Details

• Manufacturer Part Number:

  TC4584BF

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  SOP-14

• Pin Count:

  14

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  5

• Family:

  4000/14000/40000

• JESD-30 Code:

  R-PDSO-G14

• Length:

  10.3 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  INVERTER

• Max I(ol):

  0.015 A

• Number of Functions:

  6

• Number of Inputs:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Prop. Delay@Nom-Sup:

  340 ns

• Propagation Delay (tpd):

  340 ns

• Qualification Status:

  Not Qualified

• Schmitt Trigger:

  YES

• Seated Height-Max:

  1.9 mm

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  5.3 mm
