TC4584BP(N,F) - Toshiba

Description: Toshiba TC4584BP(N,F), Hex Schmitt Trigger Inverter, 4mA, 3 → 18 V, 14-Pin PDIP

Download TC4584BP(N,F) Model

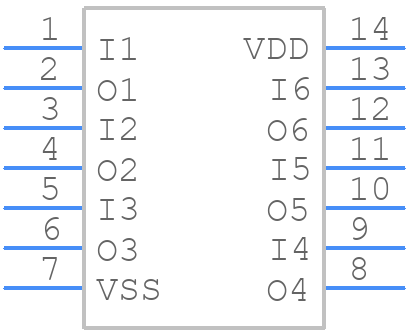

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TC4584BP(N,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom
3D Models
TC4584BP(N,F) - Toshiba  - 3D model - Dual-In-Line Packages - DIP14-P-300-2.54
click to zoom

TC4584BP(N,F) Details

  • Manufacturer Part Number:

    TC4584BP(N,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    4.5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.25 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Max I(ol):

    0.015 A

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Prop. Delay@Nom-Sup:

    340 ns

  • Propagation Delay (tpd):

    340 ns

  • Schmitt Trigger:

    YES

  • Seated Height-Max:

    4.45 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

TC4584BP(N,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TC4584BP is 4.5V to 18V.
  • To ensure proper power-on and power-off, the TC4584BP requires a soft-start circuit to prevent inrush currents and voltage spikes. A recommended soft-start circuit is shown in the application note.
  • The maximum output current of the TC4584BP is 1A per channel, but it can be increased to 2A per channel with an external current sense resistor.
  • The TC4584BP has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional external protection circuits may be required depending on the application.
  • The thermal resistance of the TC4584BP package is 35°C/W (junction-to-ambient) and 10°C/W (junction-to-case).
