The recommended operating voltage range for the TC4584BP is 4.5V to 18V, although it can operate up to 20V with reduced performance.
To ensure proper power-up and initialization, the VCC pin should be ramped up slowly (typically 10ms to 100ms) to the operating voltage, and the CE pin should be held high during power-up. Additionally, the input pins should be held in a valid logic state during power-up.
The maximum frequency of operation for the TC4584BP is 100kHz, although it can operate at higher frequencies with reduced performance and increased power consumption.
When the TC4584BP is not in use, the output stage should be placed in a high-impedance state by setting the OE pin high. This reduces power consumption and prevents unwanted output signals.
The thermal resistance of the TC4584BP package is typically around 60°C/W for the PDIP package and 40°C/W for the SOP package, although this can vary depending on the specific application and environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TC4584BP Overview

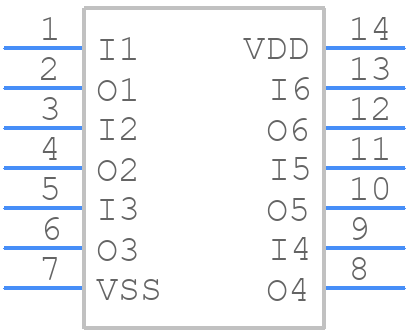

Use the download button to access the TC4584BP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC458,
or try a keyword search, such as Gates
