TC58BVG1S3HTAI0 - Toshiba

Description: TC58BVG1S3HTAI0 NAND Flash Memory, 2Gbit, 40μs, 2.7 → 3.6 V 48-Pin TSOP

Download TC58BVG1S3HTAI0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

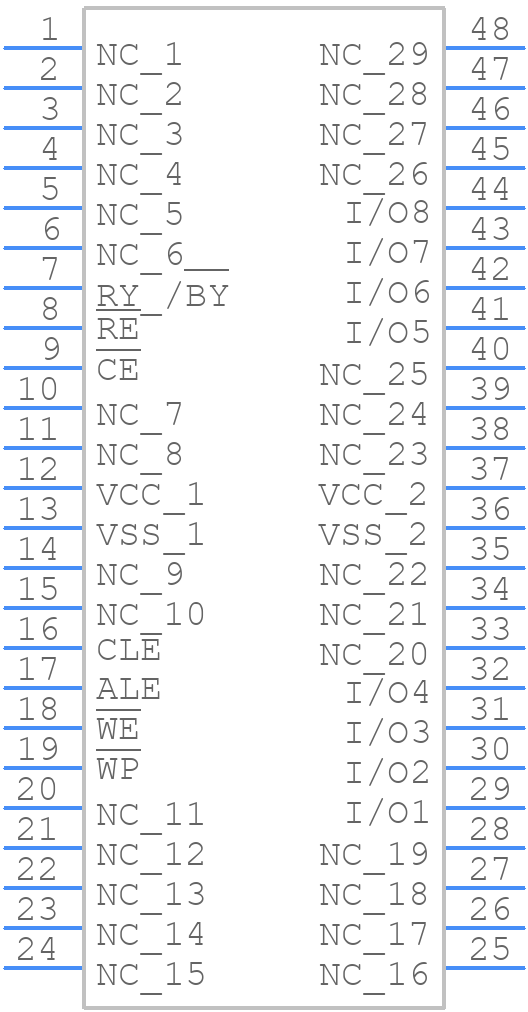

Symbol
TC58BVG1S3HTAI0 - Toshiba - PCB symbol
click to zoom

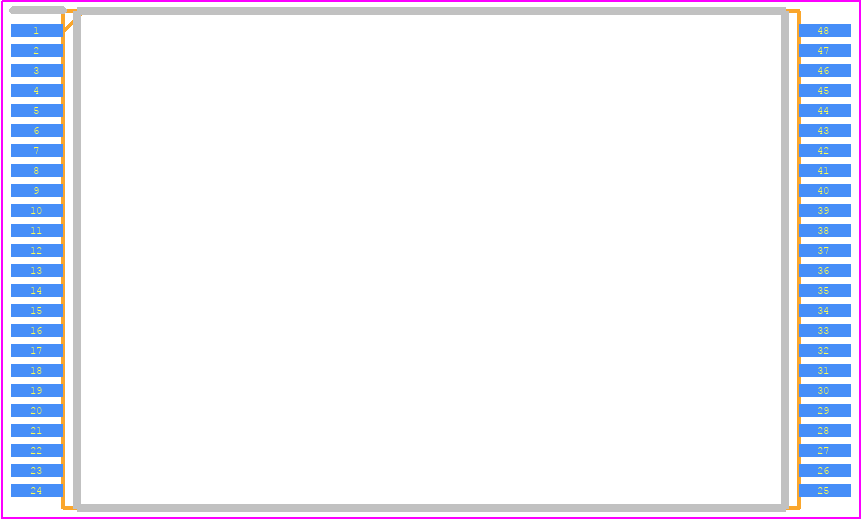

PCB Footprints
TC58BVG1S3HTAI0 - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TC58BVG1S3HTAI0
click to zoom
3D Models
TC58BVG1S3HTAI0 - Toshiba - 3D model - Small Outline Packages - TC58BVG1S3HTAI0
click to zoom

TC58BVG1S3HTAI0 Details

  • Manufacturer Part Number:

    TC58BVG1S3HTAI0

  • Part Life Cycle Code:

    Transferred

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Toshiba America Electronic Components

  • Package Code:

    QFP

  • Technology:

    CMOS

  • uPs/uCs/Peripheral ICs Type:

    SECONDARY STORAGE CONTROLLER, FLASH MEMORY DRIVE

TC58BVG1S3HTAI0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TC58BVG1S3HTAI0 is -40°C to 85°C.
  • The power-up and power-down sequences for the TC58BVG1S3HTAI0 should be handled according to the datasheet, with a slow ramp-up and ramp-down of the power supply voltage to prevent damage to the device.
  • The maximum allowable voltage for the TC58BVG1S3HTAI0 is 3.6V, and exceeding this voltage may cause damage to the device.
  • To ensure data integrity and prevent data corruption during power-down or power-up sequences, it is recommended to use a voltage supervisor or a power-on reset circuit to ensure that the device is properly initialized and configured before accessing the memory.
  • The recommended storage temperature range for the TC58BVG1S3HTAI0 is -40°C to 125°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TC58BVG1S3HTAI0 Overview

Use the download button to access the TC58BVG1S3HTAI0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TC58B, or try a keyword search, such as Secondary Storage Controllers
